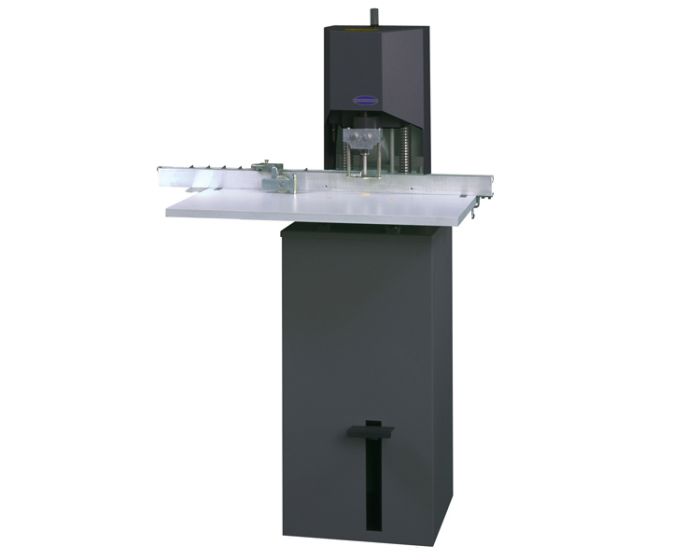

Challenge JF - Single-Spindle Drill w/ 2" Capacity
The Challenge JF is a single spindle paper drill with hands-free, efficient operation in a low maintenance unit with a 2" drilling capacity. If you are in the market for a reliable heavy-duty single-spindle drill, no other drill can match up to the Challenge JF Drill's performance/price point.
2" Drilling Capacity
13 Hollow Drill Bit Sizes
Foot Pedal Operation
Automatic Paper Chip Removal
Adjustable Margins
Auto Trip Side Guide
Built to Last
| Challenge JF Specifications |
| Max. Lift Capacity |
2" |
| Operation |
Foot Pedal |
| Drill Heads |
1 Stationary |
| Drill Bits Included |
1 @ 1/4" & 1 @ 5/16" |
| Minimum Center-to-Center |
3/8" |
| Maximum Center-to-Center |
18.5" |
| Bit to Backgauge Range |
0" to 4" |
Motor |
¼ Horsepower, 5.3 amps |
| Electrical |
115 V, 60Hz 15 amps |
Overall Height |
60" |
Weight |
154lbs. |
Download this machine's Operator Manual - pdf
