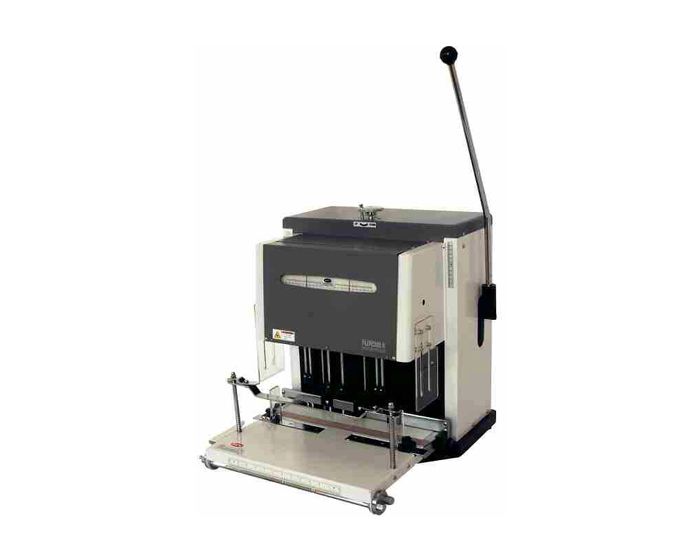

FP-IVT 3-Spindle Paper Drill
Features a 2.5" drilling capacity with adjustable, self-centering side-guides and movable outer heads. Fits sheets sizes up to 17" on the movable table.
The FP-IVT is a table top 3 spindle drill with a drilling capacity of up to 2 1/2". The center head is fixed and the outer two heads are adjustable from 2 1/4" to 4 3/4". The table has self centering guides for the placement of paper. Paper size ranges from 3 1/2" to 17" wide. Back margin is adjustable up to a 3 1/2" depth. Table size is 18 1/4" x 14 3/8". Paper drills are available from 1/8" (3mm) to 3/8" (9mm) in diameter.
The FP-IVT is equipped with a moving table that has two stop bars. The first stop bar has adjustable stops so that if drilling jobs with more than 3 holes, this can be set up to accommodate these jobs. The preprogrammed bar has setting for two stops (6 hole) and 12 stops (36 hole).
The FP-IVT has a unique design. the belt driven spindles are powered by three 1/4" horse power motors. As an added safety feature, when the drill head is in the up position, the motor does not run. Power is 110 volts.
- Hand Lever Operation
- 2.5" Drilling Capacity* (up to 4" for select bits)
- Fixed Center Spindle, Moveable Outer Spindles
- 5 Hollow Drill Bit Sizes
- Self-centering Side Guides
- Accommodates 3.5" - 17" Wide Paper Stacks
- Each head is belt-driven by its own ¼ horsepower motor
- Auto-off safety feature for motors when handle is upright
| FP-IVT 3-Spindle Drill Specifications | |
| Max. Lift Capacity | 2.5" (*up to 4" w/select bits 1/4" and larger diameter) |
| Operation | Hand Lever |
| Actuation | Table lifts up to bits |
| Drill Heads | 1 Stationary, 2 adjustable |
| Distance between Spindles | 2.25" - 4.75" |
| Drill Bits Included | 3 @ 5/16" |
| Drill Bit Sizes | 4 (1/8" to 3/8") |
| Bit to Backgage Range | 0 to 3.5" |
| Table Dimensions | 18.25" W x 14.37" D |
| Motors (x3) | 1/4 Horsepower |
| Electrical | 110 V, 60Hz |
| Dimensions | 22-3/8"(H)x 24"(W)x 21.2"(L) |
| Weight | 145 lbs. |
