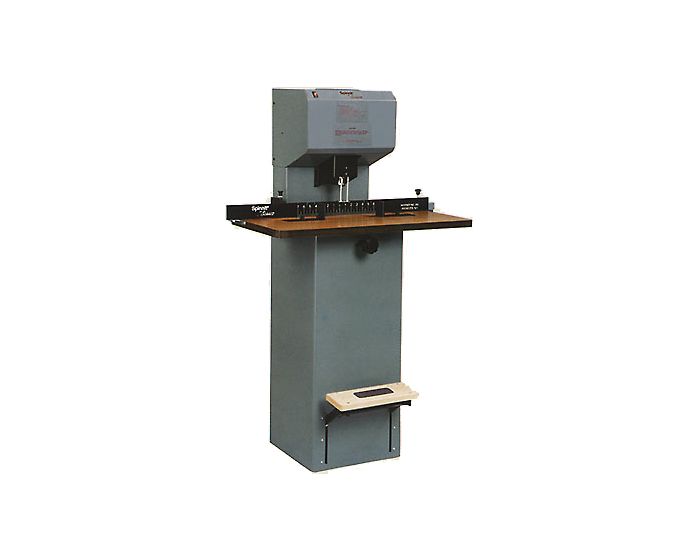

Lassco FM-2 - Single-Spindle Drill w/ 2" Capacity
The Lassco FM-2 is a single spindle paper drill with hands-free, efficient operation in a low maintenace unit with a 2" drilling capacity. Also features a traversing table with a 14" total travel to the right or left for multiple hole drilling. The FM-2 includes one drill sharpener, chip clearer, and "SPIN-EZE" drill bit lubricant.
Foot pedal activated
2" Drilling Capacity
Mechanical lift table operation*
12 Hollow Drill Bit Sizes
Teflon coated bits available (limited sizes)
Adjustable margin (bit to backgauge)
6 adjustable stop collar guides
15" x 32" traversing table surface
Paper alignment guides
| FM-2 Specifications |
| Max. Lift Capacity |
2" |
| Operation |
Foot Pedal |
| Drill Heads |
1 Stationary |
| Drill Bits Included |
1 @ 1/4" |
| Standard Margin |
1-3/4" |
| Maximum Margin |
3-3/4" |
| Table Size |
15" x 32" |
Motor |
¼ Horsepower, 1725 RPM |
| Electrical |
115 V, 60Hz, 5.4 amps |
Overall Height |
54" |
Weight |
150lbs. |
