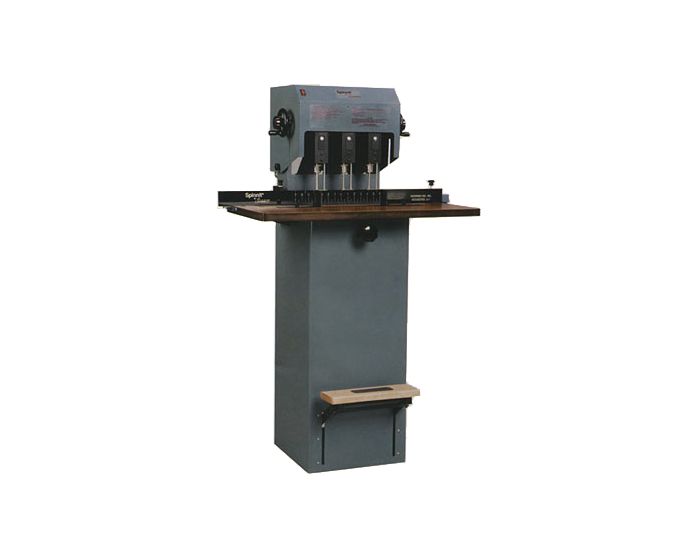

Lassco FMM-3 - Three-Spindle Drill w/ 2" Capacity
The Lassco FMM-3 is a 2" capacity 3 spindle paper drill with easy moveable head design (*stationary head model available). This paper drill is built for maximum production performance with ease of operation and offers hands-free, efficient operation in a powerful unit. Also features a rugged, mechanical lift traversing table with a 14" total travel to the right or left for multiple hole drilling. The FMM-3 includes one drill sharpener, chip clearer, and "SPIN-EZE" drill bit lubricant.
Foot pedal activated
3 moveable heads*
2" Drilling Capacity
Rugged, mechanical lift table operation*
12 Hollow Drill Bit Sizes
Teflon coated bits available (limited sizes)
Adjustable margin (bit to backgauge)
6 adjustable stop collar guides
15" x 32" traversing table surface
Paper alignment guides
| FMM-3 Specifications |
| Max. Lift Capacity |
2" |
| Operation |
Foot Pedal |
| Drill Heads |
3 Moveable |
| Drill Bits Included |
1 @ 1/4" |
| Standard Margin |
1-3/4" |
| Maximum Margin |
3-3/4" |
| Table Size |
15" x 32" |
Motor |
¾ Horsepower, 1725 RPM |
| Electrical |
115 V, 60Hz, 10.8 amps |
Overall Height |
52" |
Weight |
180lbs. |
