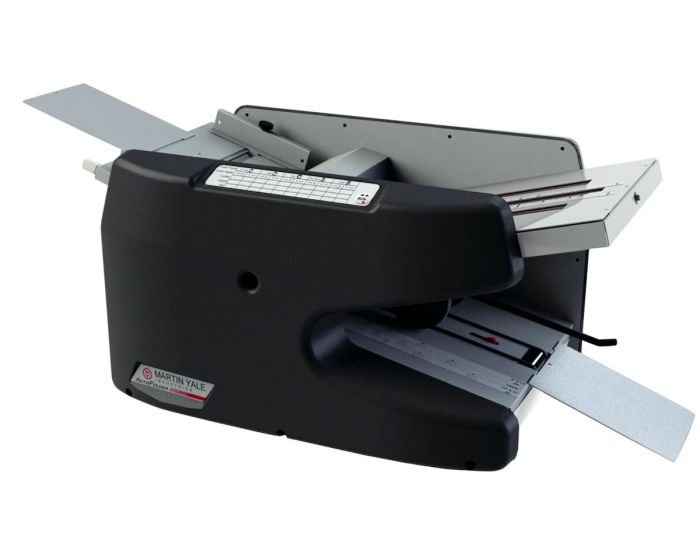

 Martin Yale 1601 Paper Folder
Delivering speed and ease of use in one package, the Martin Yale 1601 paper folder is the ideal folding machine for your convenience copier. Choosing from 5 common fold patterns is extremely simple, using a simple rocker switch - just move the fold plates to the pre marked positions. It easily handles most common papers up to 8½" x 14" and with speeds of up to 9000 sheets per hour the MY 1601 folder is the perfect match for small businesses, churches, schools and small mailing departments.
Key Features:
Easy-to-use switch moves fold plates to paper stops
5 pre-set fold patterns
Precision paper skew adjustment
Creates 5 different folds: letter (except with 8½" x 14"), half, z-fold, double parallel, right-angle, and baronial
No paper fanning needed
Self-adjusting retarder avoids feeding doubles
Speeds of up to 9,000 sheets per hour
Handles sheet sizes from 3½" x 5" to 8½" x 14", 16-28 lb. bond
Feed table capacity of 150 sheets
Folds stapled/non-stapled sets up to 4 sheets by hand-feeding documents into the feed table bypass
| Martin Yale 1601 Paper Folder Specifications |
| Paper Sizes |
3½" x 5" to 8½" x 14" |
| Stock Weights |
16lb. to 28lb. bond |
| Folding Speed: |
Up to 9000 sheets/hr. on 8.5" x 11" |
| Feed Tray Capacity |
Approx 150 sheets |
| Fold Patterns |
Half, 8-Page, Letter (not on 8.5" x 14"), Accordion (Z-fold), Double Parallel |
| Power |
115V 60HZ |
| Dimensions |
20.6" x 14.2" x 17.2" |
| Weight |
38 lbs. |
| Warranty |
1 Year Defective Parts |
|
| | |
