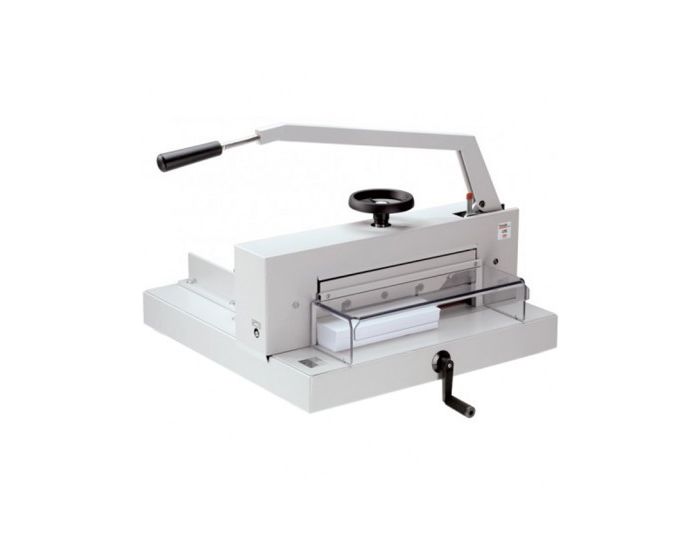

 Triumph 4705 Manual Cutter 18-3/4"
18 3/4" Powerful guillotine for manual operation with a precise measuring scale on the front machine table. The spindle guided backgauge with hand crank allows a precise adjustment of the desired measures. The 4705 is an all metal, heavy-duty construction cutter featuring modern safety guards and spindle-crank clamping system. This cutter is durable enough to handle just about any job and economically priced to fit into smaller budget.
Rugged, all-metal construction
Safety guide and measuring scale
Spindle-guided backgauge with hand crank
The spindle clamping system applies firm pressure along the entire cutting length
Fitted safety catch and blade lock
Simple blade change and adjustment
Precision-ground guide plates and solid-steel blade carrier
Side guide marked in standard and metric (calibrated to divisions of 1/32")
Table stand shown above is optional
| 4705 Manual Cutter Specifications |
| Cutting Width |
18-3/4" |
| Cutting Height |
3" |
| Narrow Cut |
1" |
| Cutting Length
behind Knife |
19" |
| Table Length in front of Knife |
8 2/5" |
| Dimensions (w/stand) |
40-1/2" W x 20" x 34-3/8" D
(46-7/8" H w/stand) |
| Actual Weight |
313 lbs. |
