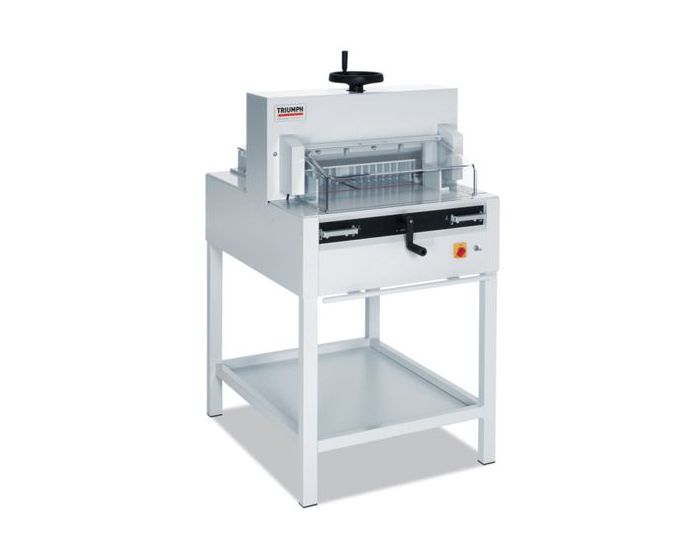

Triumph 4810D Semi-Automatic Cutter - 18-3/4"
 |
triumph 4800 cutter series overview
 |
 |
18 3/4" features an electro-mechanical blade drive and manual spindle clamping system with a very favorable price/performance ratio. Complete with stand and storage shelf under the machine. The 4810D offers affordable semi-automatic performance, precision and operating simplicity as well as the greatest possible safety. The safety package includes front and rear guards, true two-hand operation, safety key to lock blade and disk brake for instant blade stop.
Spindle guided backgauge with hand crank
The spindle clamping system applies firm pressure along the entire cutting length
Quality blade can easily be changed without removing covers
The back gauge measuring scale is easily read and is located on the front table
Solid steel blade carrier and solid blade guides
Transparent safety guards on front and rear tables
2 side guides on the front table and back gauge allow precise positioning, even for small sheets
Motor protection switch
| 4810D Semi-Automatic Cutter Specifications |
| Cutting Width |
18-3/4" |
| Cutting Height |
3" |
| Narrow Cut |
1-1/4" |
| Cutting Length
behind Knife |
17.72" |
| Table Length in front of Knife |
13-3/5" |
| Electrical |
115V, 60 Hz |
| Dimensions (w/stand) |
29-3/4" W x 53.5" H x 38-1/4" D |
Weight |
457 lbs. |
