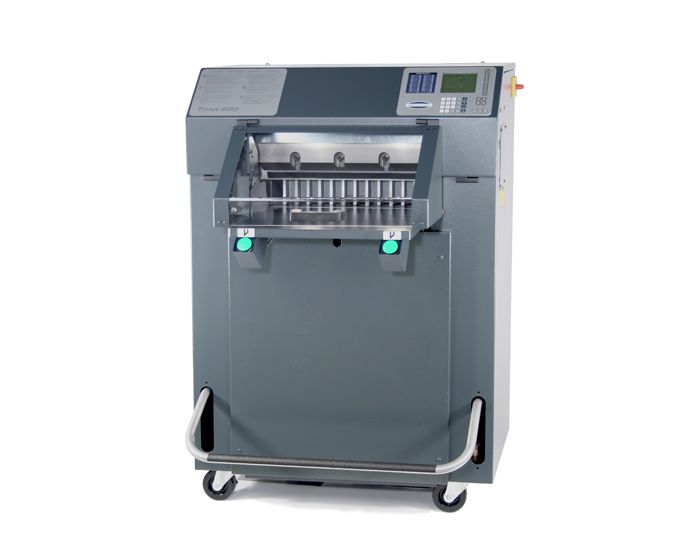

Challenge Titan 200 Fully-Automatic Hydraulic Paper Cutter w/ Tilt Shield - CMC-200

$18,975.00
In stock
SKU
CMC-200

The Challenge Titan 200 is a 20" fully-automatic programmable paper cutter. Capable of cutting 3.25-inch lifts, this cutter offers excellent productivity, capacity, ease of operation and safety. Includes tilt-shield safety cover.
FREE ground shipping on this item!
Contact CFS for best price, click to reach us or call toll-free: 1-888-237-3221

The Titan 200 is a 20 inch wide fully-automatic paper cutter with hydraulic clamp pressure and a powered blade. The easy-to-read digital display allows for ultimate control along with a line light cut position indicator and push button controls, the 200 paper cutter provides easy use as well as operator protection. The Titan 200 is the ideal cutter for a mid-to-high production facility that requires high-speed production, durability and superior safety.

Features Include:

  • 20" Cutting Width, 3-1/4" Clamp Opening
  • Hydraulic Clamping & Cutting
  • Easy to Read LED Digital Display
  • Line Light Cut Position Indicator
  • Hydraulic Motor Runs Only During Cutting Cycle
  • Plexiglas Safety Shield
  • Rear Table Safety Cover
  • Dual Cut Buttons TO Activate Cutting Cycle
  • Heavy Duty Casters Cast Iron and Steel Construction
  • Plugs Into 208V/230V 1-Phase, 60 Hz, 12 Amps Electrical Socket
  • 2 Year Warranty

Includes: Inlaid carbon alloy tool steel knife, 3 plastic cutting sticks, jogging aid, owner's manual,, tool kit, knife-change safety holder assembly.

Titan 200 Automatic Cutter Specifications
Cutting Width 20"
Cutting Height 3.25"
Clamping Method Hydraulic & Manual (optional foot lever)
Min. Clamping Force 1250 lbs.
Max. Clamping Force 2500 lbs.
Narrow Cut 0.5"
Cutting Length behind Knife 20"
Table Length in front of Knife 16"
Table Height (from floor) 36"
Electrical 208V/230V 1-Phase, 60 Hz, 12 Amps (service size 15 Amps)
Requires receptacle type: NEMA 6-15R or 6-20R
Dimensions 36" W x 53" H x 49" D
Weight 755 lbs.
Shipping Weight 920 lbs.
Warranty 2 Years Defective Parts
