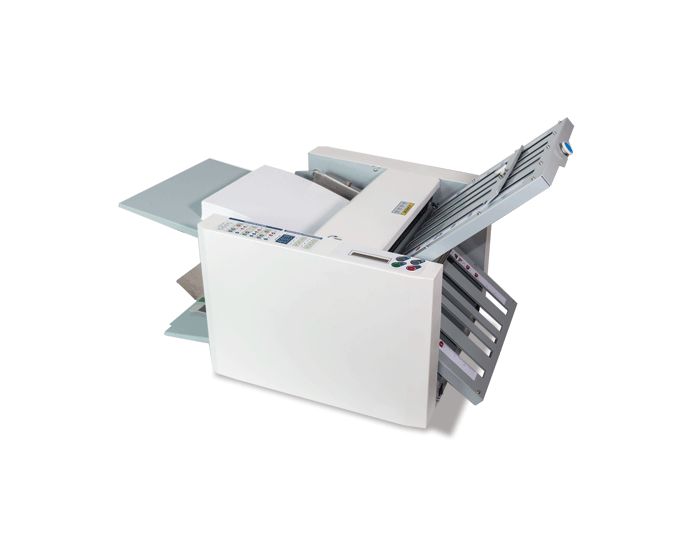

Formax FD 324 Document Folder - FD 324

$2,475.00
In stock
SKU
FD 324

Manual-setting paper folder with speeds of up to 8,600 sheets per hour.

The FD 324 folds documents at speeds of up to 8,600 sheets per hour and accommodates paper up to 12” x 18”. Its drop-in feed system features three feed tires for consistent feeding. Fold plates are pre-marked with four common fold settings for Letter, Zig-Zag, Half, and Double Parallel, in 11”, 14”, and 17” paper sizes. Quick release fold stops and fine tune adjustment knobs ensure crisp, accurate folds every time.

Designed with ease of operation in mind, the drop-in feed system eliminates the need to fan paper. Simply square the paper stack, up to 500 sheets, and load it into the feed tray. The LCD control panel features a 3-digit resettable counter with AutoBatch, which allows users to process a specific number of sheets with a pause between sets, ideal for groups of flyers or mailings. In addition, the output conveyor includes easily adjustable stacker wheels for neat, sequential stacking of folded pieces.

Standard features include a durable all-metal frame and side covers, skew adjustment knob, and a graphic setup guide on the operator panel, with icons that match the fold plates for easy setup.

Clearly-marked fold settings and simple out-of-the-box operation make the FD 324 a perfect addition to schools, churches, and offices looking for easy setup and minimal adjustments.

Product Details

  • Variable Speed: Jobs are processed quickly at speeds of up to 8,600 pieces per hour.
  • Extended Outfeed Conveyor: Allows for neat, sequential stacking of folded documents.
  • Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required.
  • Simple Operation: Easily change processing speed with the simple speed adjustment knob.
  • Paper Sizes: Handles paper sizes up to 12" x 18".
  • Pre-Marked for Three Popular Folds: Letter, Zig-Zag and Half fold in 11", 14" and 17" paper lengths.
  • Custom Folds: Fold plates can be easily adjusted for custom folds including Gate, Fold Out and Double Parallel.
  • Three-Tire Friction Feed System: Accurately pulls paper into the fold rollers.
  • Skew Adjustment: Adjusts feed table left or right for crisp, accurate folds.
  • Rugged Construction: Heavy-duty steel frame and molded, high-impact side covers for durability.
  • Quick, Easy Setup: Clearly marked fold settings and removable top and bottom fold plates.
  • Made in the USA

Specifications

  • Specifications Speed: Up to 8,600 sheets per hour
  • Hopper Capacity: Up to 500 sheets 20# (75gsm)
  • Pre-Marked Folds: Letter, Zig-Zag, Half, Double Parallel
  • Paper Size: Min: 4” W x 5” L Max: 12’ W x 18” L
  • Paper Weight: Up to 30# (112gsm)
  • Dimensions: 33” L x 18.5” W x 22” H Weight: 75 lbs (25kg)
  • Power: 120VAC 60 Hz
  • Warranty:
    • 90 day limited warranty on parts.
    • Excluding wearables and labor.

Formax FD 324 Document Folding machine
