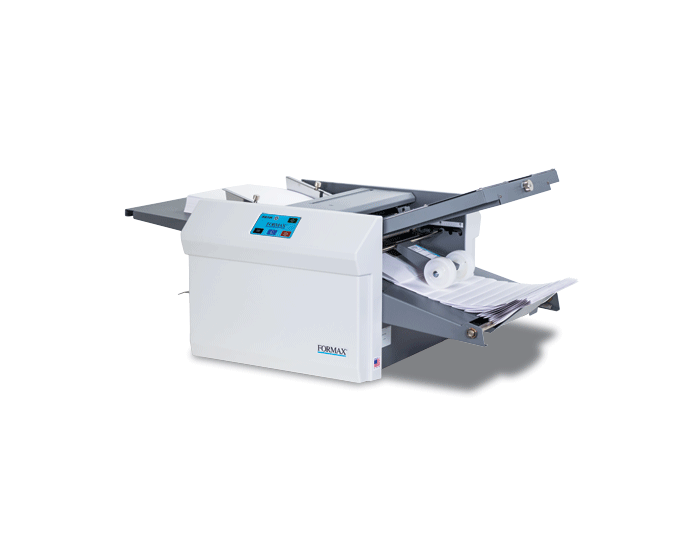

Formax FD 346 Touchscreen Desktop Office Folder - FD 346

$4,200.00
In stock
SKU
FD 346

A manual-setting paper folder with a touch-screen display, and speeds of up to 15,500 sheets per hour

The FD 346 Document Folder is a fast, dependable and easy-to-use solution for virtually all folding applications.  Its color touchscreen control panel features internationally-recognized symbols in place of text, making it easy for anyone to use. Six popular folds are clearly marked on the fold plates for quick set-up and operation, simply slide the fold stop to the desired fold and go.  Additional adjustments can be made with the fine tuning knobs at the end of each fold plate for precision folding.

No need to stand and watch over this folder: operators can load up to 500 sheets in the hopper, select their fold, press start and walk away to attend to other important tasks.  The FD 346 will fold the 500 sheets in no time at all and hold the folded pieces on its patented telescoping conveyor system until they are retrieved.

The optional Multi-Sheet Feeder allows up to 4 stapled or unstapled sheets to be folded at one time through a dedicated feed system with its own side guides and skew adjustment system.

The FD 346 is capable of processing paper up to 18” in length and up to 12” in width giving it the flexibility to handle a variety of paper sizes.  With its customizable jobs, operators can fold in virtually any configuration that requires only two folds. Cross folding adds to the FD 346’s flexibility allowing for additional folds in a second pass.

The innovative touchscreen, simple set-up and operation make the FD 346 an ideal solution for any church, school or small business that is cost conscious but requires the easy operation, versatility and dependability of a more expensive folder.

Product Details

  • Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use.
  • Fast Processing: Large jobs are processed quickly at speeds of up to 15,500 pieces per hour.
  • Drop-In Feed System: Three roller drop-in feed system produces dependable feeding of forms with no fanning required.
  • Adjustable Stacker Wheels: Stacker wheels can be manually adjusted to neatly and sequentially stack different paper sizes and fold types.
  • Telescoping Conveyor System: Conveyor can be set between 14" (356mm) and 36" (915mm) in length and holds up to 500 folded pieces.
  • 6-Digit Resettable & 8-Digit Life Counters: Provide maximum audit control.
  • AutoBatch Setting: Programmable to process pre-set number of sheets and stops.
  • Pre-Marked for Six Standard Folds in Common Paper Sizes: Fold plates are clearly marked for 6 popular fold types in letter, legal and ledger paper sizes.
  • Custom Folds: Fold plates can be easily adjusted for custom fold setup.
  • Optional Dedicated Multi-Sheet Feeder: Allows for up to 4 stapled or unstapled sheets to be folded at the same time.
  • Fine-Tune Adjustment: Precisely sets fold stops for crisp, accurate folds.
  • Cross-Folding: A guide is included for two pass operation.
  • Easy-Off Feed Wheel Shaft: Feed wheels can be changed without removing side covers.
  • Quick Release Fold Stops: Fold settings are quickly and easily adjusted with the quick release system.
  • Removable Roller Cover: Easily removed for improved access to fold rollers and exit area.
  • Self Centering Side Guides: Guides move in and out together to help ensure documents are fed squarely.
  • Paper Out & Cover Open Sensors: If the paper is out or the cover is open the folder will not run.
  • Fault Detection: Folder automatically stops when a fault is detected, an LED lights up on the control panel to indicate the possible fault location.
  • MADE IN THE USA!

Specifications

  • Speed: Up to 15,500 sheets per hour – based on 11" (279mm) Z-Fold, 6 Settings
  • Hopper Capacity: Up to 500 sheets 20# (75gsm)
  • Pre-Marked Folds: C, V, Z, Gate, Fold Out and Double Parallel
  • Pre-Marked: FD Model: 11", 14", 17"
  • Paper Sizes: FE Model: A5, A4, A3, B6, B5, B4
  • Paper Size:
    • Min: 3.5" W x 5" L (88.9 W x 127 L mm)
    • Max: 12.25" W x 18" L (311 W x 457 L mm)
  • Dimensions:
    • Closed: 33" L x 20" W x 19" H (84 L x 51 W x 48 H cm)
    • Fully Extended: 60" L x 20" W x 19" H (152 L x 51 W x 48 H cm)
  • Weight: 67 lbs (30kg)
  • Power: 110VAC 50/60 Hz
FD 346 Specs (892.80 kB)

Formax FD 346 Touch-Screen Paper Folding machine
