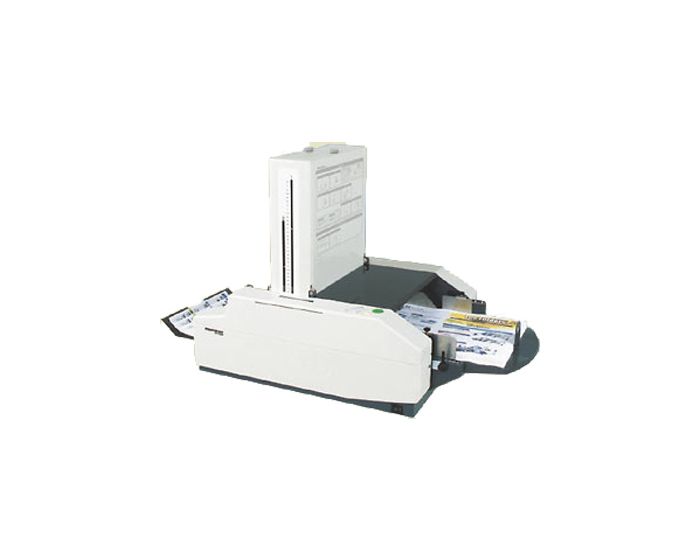

PF-P330 Paper Folder Fully-Automatic - Air Feed
- Simple Operation: The operator can quickly select from four standard preset sheet sizes and six popular fold patterns all with push button simplicity. Operational information and settings are clearly displayed on the control panel's LCD screen. The intuitive design of the control panel makes any operator comfortable and quickly productive.
- Revolutionary Paper Feed System: At the heart of the PF-P330 is a patented rotary vacuum-pulse feed system that delivers extraordinary paper feed reliability. Importantly, it simplifies operation by virtually eliminating the need to make paper feed adjustments with most stocks. This advancement utilizes a space saving and surprisingly quiet vacuum/blower pump. The pump's small 8" x 8" footprint creates flexibility by allowing for desktop positioning alongside the folder or on a cabinet shelf under the PF-P330. The low sound level of the PF-P330's pump is notable in comparison to the significantly higher sound levels traditionally associated with suction feed folders. In fact, the PF-P330 pump is as quiet as a mid-volume office copier.
- Preset Fold Formats: Letter Fold, Half Fold, Double Parallel Fold, Engineering Fold, Z-Fold, Gate Fold
- Programmable Memory Function: There are ten programmable memory settings for custom folds. The preset counter can be set to stop at a specific batch quantity with the 10-digit keypad.
- Simple Maintenance: The PF-P330 is designed for easy operator maintenance. Removal of the fold rollers requires no tools, making cleaning or replacement a simple task
|Standard PF-P330 Paper Folder Specifications|
|Paper Sizes||5" x 5.2" to 12" x 17"|
|Stock Weights||13lb. to 70lb. bond/book/offset
(dependent on grain and paper type)
|Folding Speed:||Up to 240 sheets/min. on 8.5" x 11"|
|Feed Tray Capacity||300+ sheets|
|Fold Patterns||Half, Engineering, 8-Page, Letter, Accordion, Gate|
|Dimensions||42" x 20" x 25"|
|Warranty||1 Year Defective Parts|
|Preset Fold Patterns:
