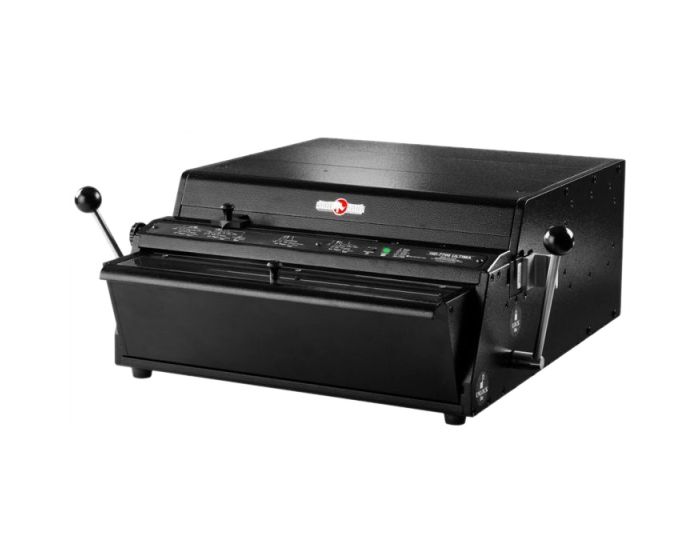

Rhin-O-Tuff ONYX HD7700 ONYX Heavy-Duty Electric Punch
New Quieter Design With 3-Year Warranty
The Rhin-O-Tuff ONYX HD7700 Ultima, Heavy Duty Electric Binding Punch is a rugged and powerful machine that can be used to punch a variety of hole patterns for multiple binding methods. Rhin-O-Tuff has been a long time leader for high quality heavy duty binding equipment. They designed the HD7700 to live up to commercial usage while being user friendly at the same time.
The punch uses interchangeable dies, each with a specific hole pattern for binding methods including wire, plastic comb, spiral coil, and many more. One standard die of choice is included with purchase. Inserting and removing the dies is quick and easy allowing you to switch from one hole pattern to another within seconds. Every die comes with fully disengageable pins for punching both standard and unusual sheet sizes. The HD7700 Ultima can power through up to 55 sheets of 20lb. paper per lift. The exact capacity varies by die.
Rhin-O-Tuff builds their machines to last using all all metal construction. They back up the quality by offering a 3 year warranty. Additional punches by Rhin-O-Tuff are available for lower volume usage such as the ONYX HD7000, ONYX OD4012, and the ONYX 4000PLUS.
- Patented auto-reverse feature. The overload detection feature triggers an auto-reversing function to reduce jamming in the punch.
- Patented "QCDS," Quick Change Die System.
- Up to 25 Cycles per minute.
- 14" open-ended punch throat allows for wider applications.
- All punch pins disengageable, perfect for unusual paper sizes.
- Standard foot-pedal operation. Optional versa switch or palm switch available.
- “Accu-Set” paper adjustment knob for fine adjustments on odd paper sizes.
- Smooth, quiet and powerful performance on-demand.
- Extra high-capacity waste tray with clear view front.
- All metal construction for durability.
- One standard die included with machine purchase. Standard die options available for plastic coil, wire-o, plastic comb, velo and 3-hole binding methods. Special options also available.
|ONYX HD 7700 Specifications|
|Punch Capacity*||Velo/3-hole = 50-55 sheets
Comb = 42-48 sheets
All other standard dies = 33-38 sheets
* number of sheets depends on paper thickness
shown based on 20# bond at .004" thick
|Width||14" open ended|
|Die Included||One Standard|
|Electrical||115V, 4 amps, 60 Hz|
|Dimensions||21" W x 8.5" H x 22" D|
