27"- Laminating width, fixed speed, single temperature controller - includes horizontal trimmer

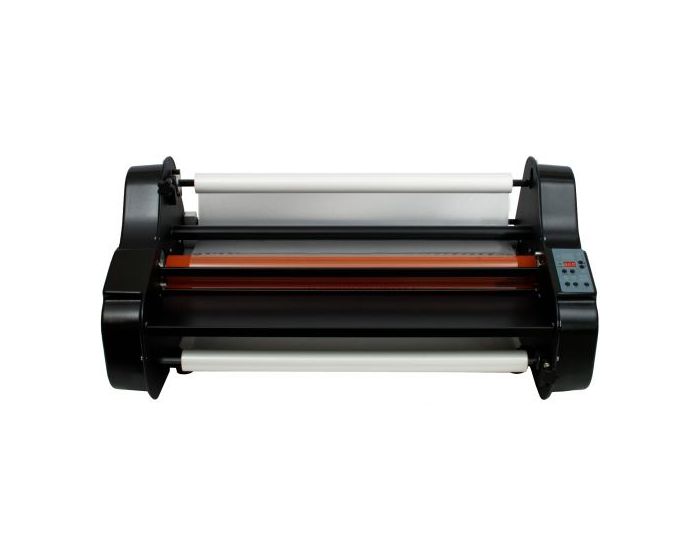

BRL-2700-PLUS 27" Roll Laminator
The BRL-2700 Series is a MADE IN THE USA, easy-to-operate 27" heated roller roll laminator specifically engineered to meet the laminating needs of schools, businesses, and other organizations searching for an economical and versatile laminating solution. The BRL Series is designed to meet the needs and budgets of all potential users. The basic functionality and mechanics are the same for all versions, with additional features added to each incremental model. The series comes standard with an Auto Shut Off feature designed to protect the rollers from overheating and excess wear. We offer fixed or variable speed versions, we also offer machines with or without horizontal end trimmers. The BRL Series, depending on the model selected, is capable of laminating films from 1.5 to 10 mil in thickness & has 1/4" mounting capability.
KEY FEATURES:
• Variable Temperature Control
• Fixed Speed Control
• 3/16" Mounting Capable without Nip Control
• Horizontal End Trimmer
• 2” Diameter Silicone Heated Rollers
• Heavy Duty Motor
• Auto Shutoff
• 120 Volt Machine
• 1 Year Warranty
• Made-in-the-USA
• Ships UPS or FedEx Ground
PLUS MODEL INCOUDES A BUILT-IN HORIZONTAL TRIMMER
Specifications | |
---|---|
Width | 27" |
Film Gauge | 1.5 & 3 MIL |
Speed Range | 3 ft/ min |
Heating Method | Heated Roller |
Speed Control | Fixed |
Temperature Control | Variable |
Temperature Controler(s) | Single |
Ready Light | Yes |
Auto Shutoff | Yes |
Reverse Function | Yes |
Mounting Capability | 3/16" |
Roller Gap Adjustment | Self Adjusting |
Core Size/Core Adapter | 1" |
Heat Roller Diameter | 2" |
Heater Type | Incoloy |
Display Type | Digital LED |
Safety Shield | Yes |
Safety Shield Safety Switch | No |
Key Pad Control | Yes |
Warm Up Time | 12 Minutes |
Slide Away Lower Roller Ideal Bar Release Mechanism For Easy Film Loading | No |
Cooling Fans | No |
Built-in Horizontal Trimmer | Yes |
Cold Lamination (PSA Rewind) | No |
Power | 120 Volt/60 Htz |
Wattage/Amps | 1400 Watts/12 Amps |
Dimensions | 35.75" x 18.5" x 11.38" |
Weight/Ship Weight | 73 Lbs/ 85 Lbs |
Ships Via | UPS/FedEx |
Country of Origin | USA |
Safety Approval | Pending |
Diameter of Feet (For Cabinets) | 27 3/4" |
Warranty | 1 Year |
Feed Table | Painted Feed Tray |
Feed Table Margin Guide | No |
Feed Table Safety Switch | No |
Mandrel Type | 1/2" Hex Shaft |
Foot Pedal | Optional |
Key Lock | Optional |
