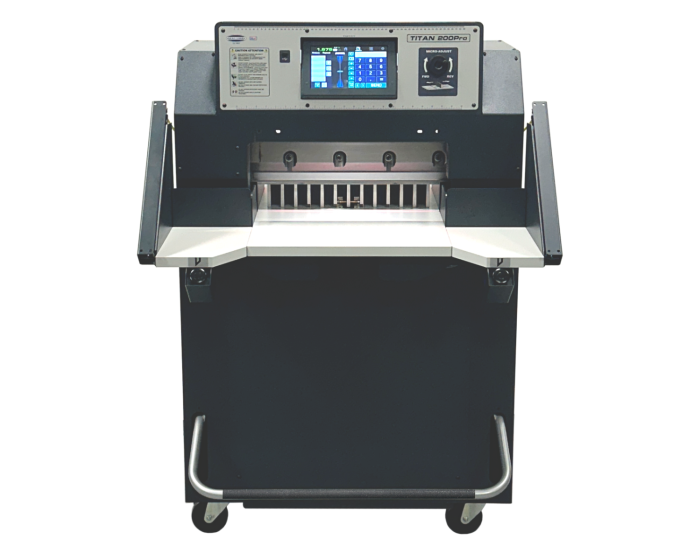

Challenge Titan 200 Pro Fully-Automatic Hydraulic Paper Cutter w/ Light Beam - CMC-200PLB
The Challenge Titan 200 Pro with light beam is a 20" fully-automatic programmable paper cutter. Capable of cutting 3.25-inch lifts, this cutter offers excellent productivity, capacity, ease of operation, and safety. Includes tilt-shield safety cover.
The Titan 200 Pro is a 20 inch wide fully-automatic paper cutter with adjustable hydraulic clamp pressure and a powered blade. The 9" color touch screen display allows for ultimate control, along with a line light cut position indicator and push button controls. The Titan 200 Pro is the ideal cutter for a mid-to-high production facility that requires high-speed production, durability and superior safety.
Features Include:
- 20" Cutting Width, 3-1/4" Clamp Opening
- Hydraulic Clamping & Cutting
- Easy to Operate Touch Screen Digital Display
- Line Light Cut Position Indicator
- Hydraulic Motor Runs Only During Cutting Cycle
- Light Beam Safety System
- Rear Table Safety Cover
- Dual Cut Buttons to Activate Cutting Cycle
- Heavy Duty Casters Cast Iron and Steel Construction
- Plugs Into 208V/230V 1-Phase, 60 Hz, 12 Amps Electrical Socket
- 2 Year Warranty
Includes: Inlaid carbon alloy tool steel knife, 3 plastic cutting sticks, jogging aid, owner's manual, tool kit, knife-change safety holder assembly.
| Titan 200 Automatic Cutter Specifications | |
| Cutting Width | 20" |
| Cutting Height | 3.25" |
| Clamping Method | Hydraulic & Manual (optional foot lever) |
| Min. Clamping Force | 1250 lbs. |
| Max. Clamping Force | 2500 lbs. |
| Narrow Cut | 0.5" |
| Cutting Length behind Knife | 20" |
| Table Length in front of Knife | 16" |
| Table Height (from floor) | 36" |
| Electrical | 208V/230V 1-Phase, 60 Hz, 12 Amps (service size 15 Amps) Requires receptacle type: NEMA 6-15R or 6-20R |
| Dimensions | 36" W x 53" H x 49" D |
| Weight | 800 lbs. |
| Shipping Weight | 920 lbs. |
| Warranty | 2 Years Defective Parts |
| Color | Black |
|---|
