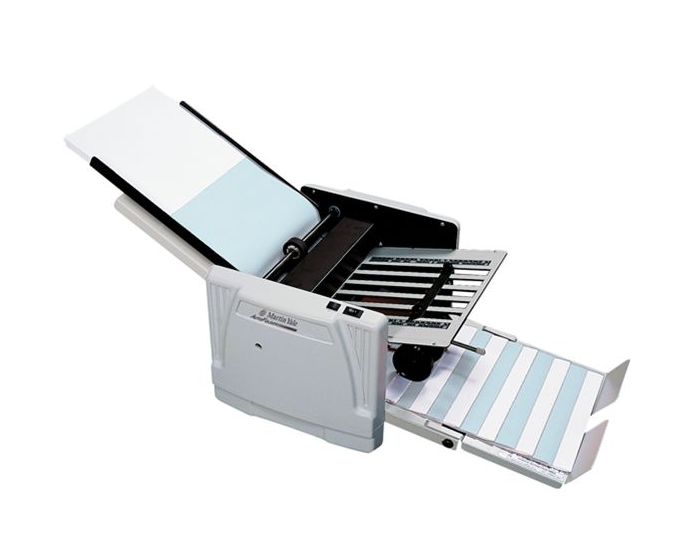

Martin Yale 1217A Medium Duty Paper Folder
The Martin Yale Model 1217A Paper Folder allows you to quickly finish your job into a large variety of common & custom fold patterns. Paper stocks ranging from 18 lb. bond all the way up to 110 lb. index can be run through this versatile paper folding machine. To keep your finishing production time moving the 1217A paper folder features a bottom fed paper infeed tray so that you can continue to load more paper without stopping the machine. This medium output folder is ideal for medium to larger mailrooms, print shops, churches & schools.
The fold gates on the 1217A folder feature simplified setting markers for common fold patterns on 8½" x 11", 8½" x 14", and 11" x 17" sheets. It accepts sheet sizes from 4" x 4" up to 11¾" x 18" with ease.
Key Features
Automatically feeds, folds, and collects a stack of documents
Ideal for medium to large mailrooms, print shops, churches, schools, etc.
Simplified adjustment for folding 8 1/2" x 11", 8 1/2" x 14" and 11" x 17" documents
Creates a variety of different folds: letter, half, z-fold, double parallel, right-angle and
Baronial
Adjustable within a fold range of 2" to 11 1/2" on the 1st fold and 1 1/2" to 5 3/4" on
the 2nd to allow for customized folds
Larger fully adjustable paper guide for ease-of-use and accuracy
Handles sheet sizes from 4" x 4" to 11 3/4" x 18"
Handles paper from 18 lb. bond to 110 lb. index stock
Folded material exits on durable conveyor belts creating easy-to-handle, fanned stacks
Fixed speed operates at 10,300 sheets per hour
Bypass for hand feeding multiple sheets - stapled or not - add for manual second
pass right angle folding
Large rubber rollers for consistent paper feeding and professional folds
| Martin Yale Model 1217A Paper Folder Specifications |
| Paper Feed Method |
Friction Feed (using rollers) |
| Paper Sizes |
4" x 4" to 11¾" x 18" |
| Stock Weights |
18lb. bond to 110lb. index
(dependent on grain and paper type) |
| Folding Speed: |
Up to 10,300 sheets/hr. |
| Feed Tray Capacity |
Approx. 200 sheets |
| Fold Patterns |
Half, Letter, Accordion, Z-fold, Engineering, Double Parallel, Baronial, Custom |
| Power |
115V 60HZ |
| Dimensions |
42" x 17.5" x 17" |
| Weight |
59 lbs. |
| Warranty |
1 Year Defective Parts |
