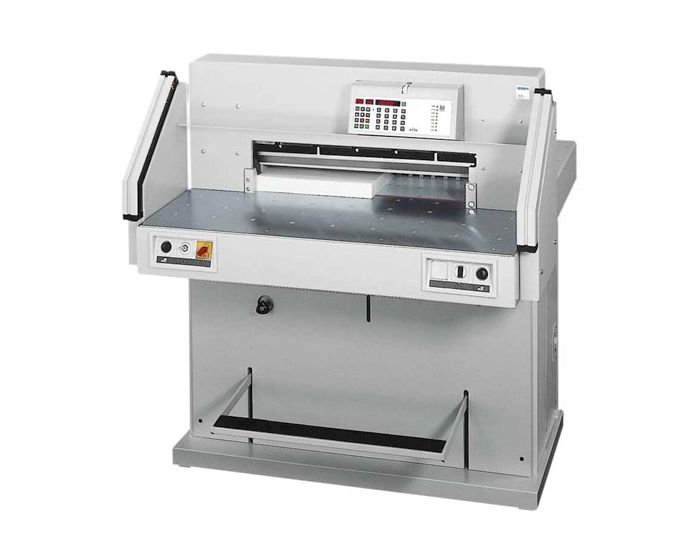

721-06 LT Automatic Programmable Hydraulic Cutter

$23,999.00
In stock
SKU
721-06

28" fully-automatic programmable hydraulic cutter w/ 3" cutting height capacity - large shop capacity, storage of 99 job settings and ultimate safety features including lightbeams.
FREE ground shipping on this item!
Contact CFS for best price, click to reach us or call toll-free: 1-888-237-3221

28" cutting width - programmable features coupled with efficient and accurate cutting, ensures superior performance frm this hydraulic-powered guillotine cutter. The Triumph 721-06 comes standard with safety features such as true 2-hand cutting activation, automatic blade/clamp return from any position in the cycle and front safety light beams. Push-button controls and the digital cut position LED display are accurate to 1/10th of a mm or 1/100th of an inch. Programmability extends efficiency by storing up to 99 custom jobs, with 99 cut steps in each program. This cutter performs with push-button ease while delivering quick productivity and capacity, especially for common cut jobs.

  • Four side guides for exact paper alignment
  • Safety light beams halt operation when interrupted
  • Electronic hand wheel allows for variable speed adjustments of back gauge
  • Back gauge is easily moved with keypad, stored program or hand wheel
  • Haydrualic-driven blade delivers ultimate power
  • The automatic paper clamp applies firm pressure along the entire cutting length
  • Adjustable hydraulic clamp pressure
  • Solid steel blade carrier and adjustable blade guides
  • Easy blade changing from front of the machine
  • Transparent safety guards on rear table
  • Optical cutting line indicates the exact position of the cut
  • False clamp and foot -pedal for pre-clamping
  • Optional side tables extend operator work surface

721-06 LT Programmable Hydraulic Cutter Specifications
Cutting Width 28"
Cutting Height 3"
Narrow Cut 3/4" (3-1/2" with False Clamp)
Program Capabilities 99 storage jobs - with 99 steps each
Cutting Length Behind Knife 28-3/8"
Table Length in front of Knife 20-7/8"
Electrical 220V, 3 phase
Dimensions 51-3/8" W x 52-1/2" H x 59-1/2" D
(82-3/4" W with side tables)
Weight 970 lbs.(1007 lbs. with side tables)
