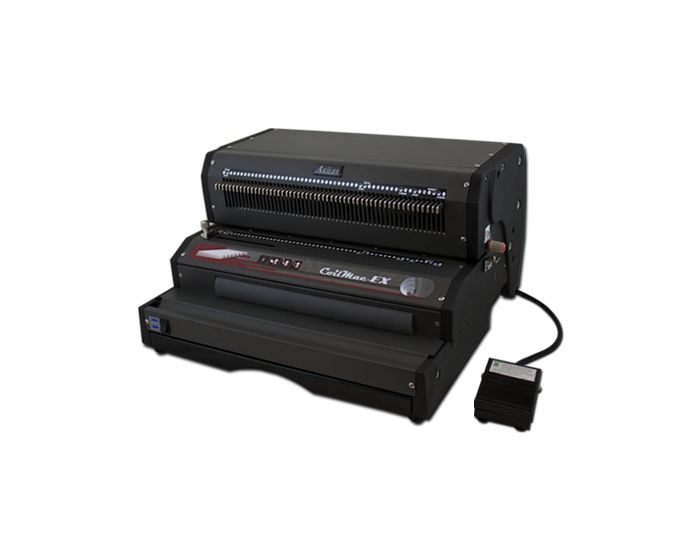

Akiles CoilMac-EX Plus 4:1 Oval Electric Coil Binding Machine - AK-CMAC-EX41P

Bind faster and cleaner with a heavy-duty, all-metal coil machine built for daily production. The electric foot-pedal punch and built-in roller inserter handle both halves of the job, while special oval 4:1 holes can boost your coil binding speed by as much as 50% over standard round holes.

Key Features

• Heavy-duty electric punch — all-metal motor punches up to 25 sheets of 20 lb paper at a time.
• Oval 4:1 holes (4mm x 5mm) — the oval shape guides coils in faster, increasing binding speed up to 50%.
• All 54 disengageable pins — every die pin pulls out independently for a clean, professional punch on any paper size.
• Electric full-size inserter — a large built-in roller spins coils into the document quickly with less hand fatigue.
• Foot-pedal operation — keeps both hands free for complete control while punching and inserting.
• Open punching throat & continuous guide — a 13.5" throat lets you align and punch documents longer than letter size.
• Side & depth margin control — center the punch and set the correct margin depth for multiple book sizes.
• U-shaped alignment channel — conforms larger-diameter coils to the spine for faster, easier insertion.
• Reverse function — manually back the motor out to clear jams (Allen wrench needed).
• Free coil crimper & selector included — finish books right out of the box, with an optional upgrade to the Finish@Coil-E1 electric crimper for coils up to 2".

Specifications

• Operation: Electric punch & insert (foot pedal)
• Punching capacity: Up to 25 sheets (20 lb paper)
• Hole shape: Oval (4mm x 5mm)
• Pitch: Letter 4:1 (0.248")
• Disengageable dies: All 54
• Punching length: 13.5" with open throat for longer documents
• Binding capacity: Up to 7/8" (electric) / up to 2" (manual)
• Construction: All-metal, heavy-duty
• Dimensions: 18" W x 16" D x 10" H
• Weight: 50 lbs
• Warranty: 1 year
