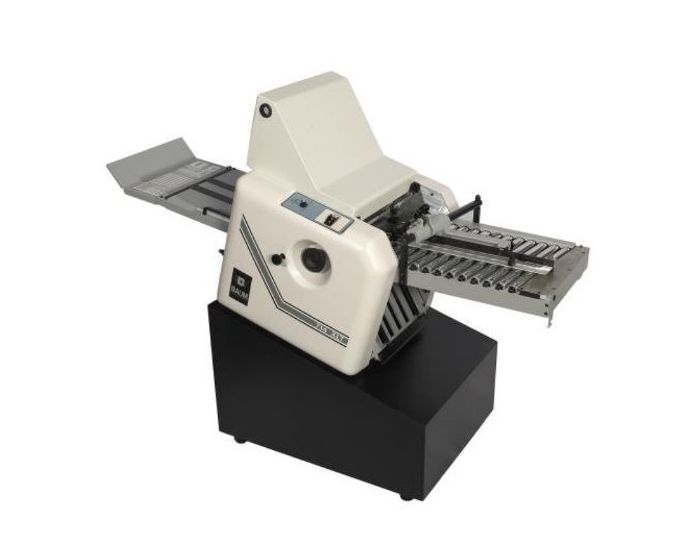

Baum 8-Page Right Angle Attachment - the Perfect Companion to the Baum 714XLT
Already have a 714XLT, but need to add right-angle functionality? Now, you can buy the 714 8-Page right-angle unit separately.
The Baum 714 "Flow-Thru" Right Angle Unit is the perfect companion to your Baum 714XLT and other Baum 714 models. It can be configured for either right-angle folding or in tandem for multiple parallel folds. An innovative pivoting idler roll design eliminates gap setting requirements. Easy-access slitter shafts allow changing attachments without removing the shafts. The 714XLT Right Angle features more effective stack removal for higher productivity, new positive drive cross-carrier design, and "up & down" folding position capability. Includes the angled stand!
|Baum 714XLT 8-Page Right Angle Accessory Specifications|
|Paper Sizes||3" x 5" to 14" x 14"|
|Max. Paper Weight||65lb. cover *may require pre-scoring|
|Maximum Size Fold - #1 or #2 Plate||13.5"|
|Minimum size fold||2.25"|
|Right-Angle fold roll speed||5000"/min|
|Dimensions||27"(H) x 49"(L) x 24.5"(W)|
|Weight/Shipping Weight||310 lbs./340 lbs.|
|Warranty||3 Years Defective Parts|
