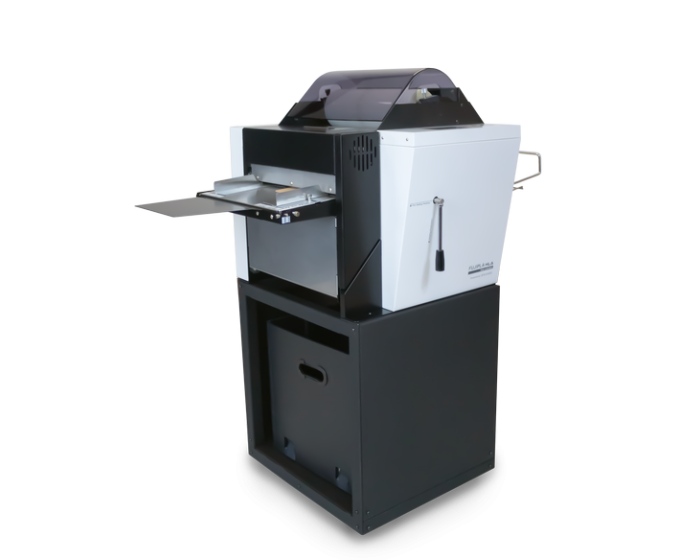

The newest, commercial-grade Fujipla laminator by Dry-Lam has everything you know and love about the previous ALM line for automatic feeding, laminating, trimming, and stacking sheets, but is now faster and better with improved features and functionality! Laminating up to 68” per minute, it is 25% faster than the ALM3230.
Product Details
Ultra-quick warm-up time of less than 5 minutes
Automatic single or double-sided lamination
2 Automatic trim options - Flush-cut: precise, micro-adjustable with ± 3mm margin adjust - Border-cut: custom-sealed options with 4-sided trim uniformity
Hands-free, automatic feed tray
Simple operation with specially encoded film for auto settings
Specifications
Laminating Width 12.6"
Speed 68" per min
Film Thickness 1.5 - 10 mil (10 mil single-side only)
Laminating Thickness 16 mil
Heat Type Heated Rollers Dual heat only
Temperature Range 170 - 270°F
Warm-Up Time Less than 5 minutes
Paper Sizes 8.5”x5.5”, 8.5”x11”, 11”x17”, 12”x18”, 13”x19”
Paper Feed Capacity 200 Sheets
Trimming Methods Flush cut or Border cut
Operation Panel Color LCD display for start, stop, temperature, speed and trim settings, leading and trailing edge side cuts are adjustable
Voltage 1200W
Power Supply 100-240 VAC, 50-60Hz
Laminator Weight 170 lbs (77 kg)
Dimensions (LWH) 48" x 23.5" x 44" (1219.2 x 596.9 x 1117.6 mm)
Boxed Weight 158 lbs (71.6 kg)
Boxed Dimensions (LWH) 31.5" x 43.3" x 71" (800 × 1100 x 1800mm)
