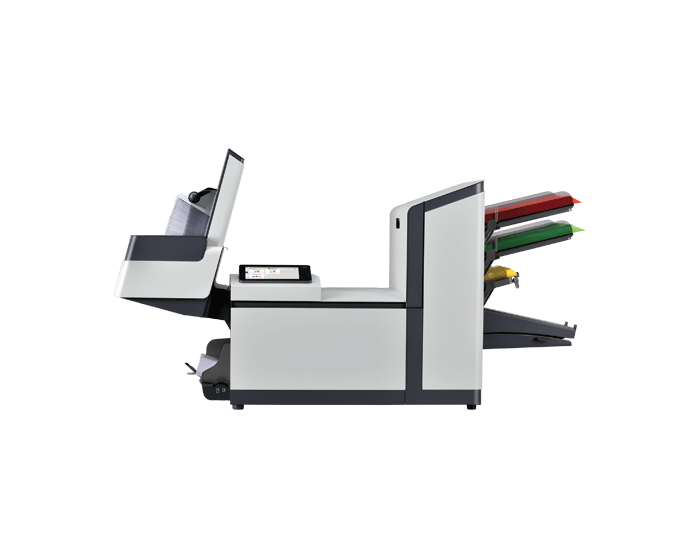

FORMAX FD 6210 Advanced 2 Folder Inserter - FD 6210ADV2

In stock
FD 6210ADV2


The Formax 6210 Series Fully Automatic Folder and Inserter combines advanced folding & inserting technology with user-friendly features and flexibility. Standard features include a 7" full-color touchscreen control panel with graphical interface, high-capacity vertical stacker which holds up to 500 finished envelopes, automatic paper and envelope presence sensors with indicators on the control panel, and a top-loading envelope hopper. It also includes an eco-friendly sleep mode which saves energy by automatically putting the inserter into standby mode after 1 hour of being idle.

The 6210 Series Series Inserter is equipped with AutoSetTM for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes and fold lengths. Recurring and frequent jobs run in AutoSetTM can also be stored as one of 50 programmable jobs. The powerful folding system enables the 6210 Series to accurately fold up to five sheets at once. Optional CIS scanning technology is available to cover the full width of the document feeders and accurately reads OMR, 1D and 2D barcodes printed in any location on a document.

To maximize the capabilty of this inserter, optional accessories are available and these include a production feeder for BREs or shirt inserts up to 6" in length, productivity package for increased output up to 20,000 pieces per month at up to 2,500 per hour, CIS Scanner, advanced OMR and BCR, short feed trays and a front or rear side exit tray.  Please call for more details and pricing.
The FD 6210-Advanced 2 is configured with two sheet feeders and one insert/BRE feeder.

Product Details

  • 7" Color Touchscreen: Graphical interface provides quick, easy setup
  • 50 Programmable Jobs: Handy for recurring or frequently processed applications
  • High-Capacity Vertical Stacker: Holds up to 500 finished envelopes in a neat, sequential order
  • AutoSetTM: Automatically senses and sets paper length, fold type, envelope size, fold length and double document detection. Simply load and go.
  • Envelope & Paper Presence Sensors: Graphic indicators on touchscreen to assist operators
  • Enhanced Folding System: Fold/insert up to 5 pages in half-fold (up to 8 w/optional Productivity Pkg)
  • Multi-Sheet Feeding: Feed up to 3 sheets from one feeder (up to 10 w/optional Productivity Package)
  • Clamshell Design: Easy access to the paper path
  • Accumulate Before Folding: Documents are folded and inserted together
  • Double Document Detection: Electromechanical sensors are unaffected by dust, smudges or paper color, providing essential document integrity
  • Multiple Insert Capability: Fold and/or insert sheets, BREs and cards in almost any combination
  • Fold Types: C, V, Z, Double Parallel, no fold
  • Fold Only without Inserting
  • Daily Mail Mode: For inserting stapled sets
  • Seal and Non-Seal Capabilities
  • Cascade Mode: Maximizes output by connecting multiple feeders with the same document. When one feeder empties, the next automatically starts feeding, for a total hopper capacity of up to 650 sheets.
  • Eco Mode: Energy-saving feature places the inserter into sleep mode after 1 hour of inactivity
  • Available Options
    • Short Feed Trays: For feeding up to 50 BREs or 325 short inserts
    • Production Feeder: Holds up to 325 BREs or 1,200 inserts, up to 6" in length
    • CIS Scanner: Spans the width of the feeders and reads OMR, 1D and 2D BCR, OCR printed horizontally or vertically anywhere on the page
    • Single or Multi-Code Reading Licenses: Able to read Single-Track OMR, Dual-Track OMR, 1D Barcode, 2D Data Matrix
    • Productivity Package: Increased speed, folding capacity, multi-sheet feeding capacity and monthly throughput
    • Front or Rear Side Exit Tray: Holds up to 225 envelopes
    • Catch Tray: Holds up to 100 envelopes

Item Specifications

  • Speed: Up to 2,000 / 2,500 pieces per hour
  • Duty Cycle: Up to 15,000 / 20,000 pieces per month
  • Standard Feeders: Up to 325 sheets each, 20# bond
  • Short Feed Tray: Up to 50 BREs or 325 inserts
  • Production Feeder: Up to 325 BREs or 1,200 inserts, up to 6" in length
  • Envelope Hopper: Up to 150 envelopes, top-loading
  • High-Capacity Vertical Stacker: Up to 500 filled envelopes
  • Catch Tray: Up to 100 envelopes
  • Front/Rear Side Exit: Up to 225 envelopes
  • Sheet Size: 3.5" - 14" H x 5" - 9" W
  • Programmable Jobs: 50
  • Maximum Insert Thickness: 1mm
  • Maximum Set Thickness: 2.5mm
  • Envelope Size: #10 and 6" x 9.5", 3.5" - 6.35" H x 6.3" - 9.7" W
  • Dimensions: 49" L x 36" H x 16.5" W
  • Power: 120V AC, 60 Hz
  • Warranty: 90 day warranty on parts

FORMAX FD 6210-Series Folder/Inserter
