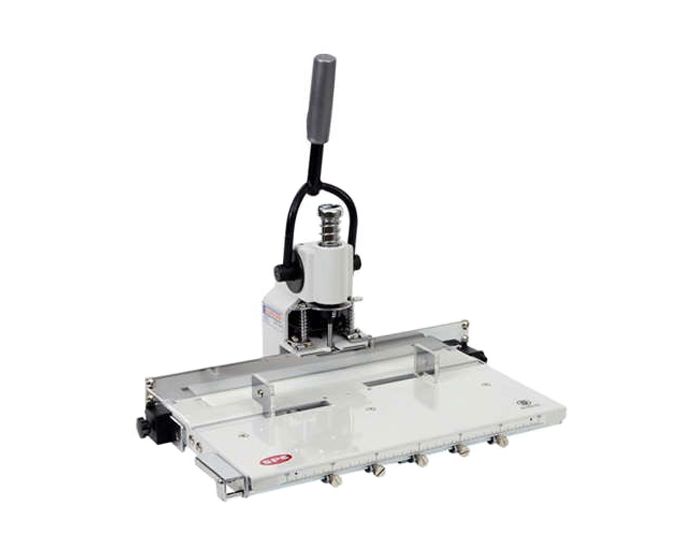

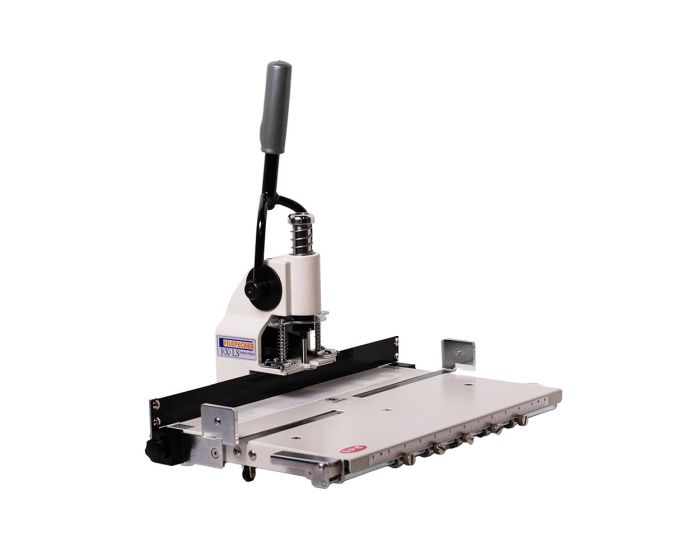

FP-1XLS Hole Punch w/Moveable Table - FP-1XLS

In stock

High capacity, light/medium-duty hole punch with traversing table makes for quick, multi-hole production at a low cost. Punching Capacity: 300 Sheets/1-3/8"
Free ground shipping on all orders $50 or more!

Light/medium-duty punch w/sliding table & 5 adjustable stops, punches up to 300 sheets of 20 LB bond (1-3/8" tall stack)

The FP-1XLS is a heavy duty paper punch that will drill through a stack of paper up to 1" thick*. The sliding table allows for very fast and accurate punching of one, two, three, four, or five holes - just slide the table until the paper is aligned to the 5 paper stops, and pull the handle down to punch, then slide to the next stop, and continue on until all of the holes you want are punched. Self-centering guides ensure perfectly placement, and minimal effort is required to punch. The 1" capacity is equal to about 300 sheets of standard copy paper, or you can also use the FP-1XLS for plastic cards and laminate. Once the chip bin is full, just slide it out of the back of the machine to empty. This high quality, but affordable paper drilling and punch machine is perfect for schools, churches, small copy and print shops, businesses of many kinds, and even casinos. This little paper drill packs a powerful punch.

The FP-1XLS is a versatile punch drill that has drill bits available in 1/4", 3/16", 3/8", or 5/16" hole sizes so you can punch the hole diameter that you need for your specific application. A 3mm allen wrench is included for each changeover of drill bit sizes. The table width allows for punching of paper up to 14" wide. Whether punching stacks of paper for ring binders, loose leaf binding rings, medical fileback tabs, or casino and hotel room cards, the SPC FP-1XLS is a great paper drill. It is completely manual, and requires no electricity to run, and yet, offers easy punching of even full 1" thick stacks*, as very little pressure is needed.

  • Maximum Bit-to-Backgauge Margin Depth: 1-3/8"
  • Maximum Punch Capacity: 1-3/8" tall stack/300 sheets 20# bond
  • Traversing table with 5 adjustable stops
  • Punch Bit Sizes: 3/16", 1/4", 5/16" & 3/8"
  • Includes (2) 6mm (approx. 1/4") bits!

How to Use FP-1XLS Paper Drill Hole Punch

   ①  Set your paper stops using the guide and screws (using a flat head screwdriver) on the front of the table to determine where the holes will punch.
   ② Place your stack of paper on the table, press the self-centering guides around the stack, and lower the drill guide to be level with the stack.
   ③ Lift the silver handle on the left and move the sliding table all the way to the right (aligning the paper drill to the left side of your sheet). This disengages the stop so you can slide the table over them. Then release the handle and slide the table right until it hits the first stop.
   ④  Pull the drill handle to punch the hole.
   ⑤  Lift the silver handle on the left again and slide the table left until you get over the 1st stop, then release the handle. Continue sliding the table until you hit the 2nd stop. Repeat this step for all holes.
