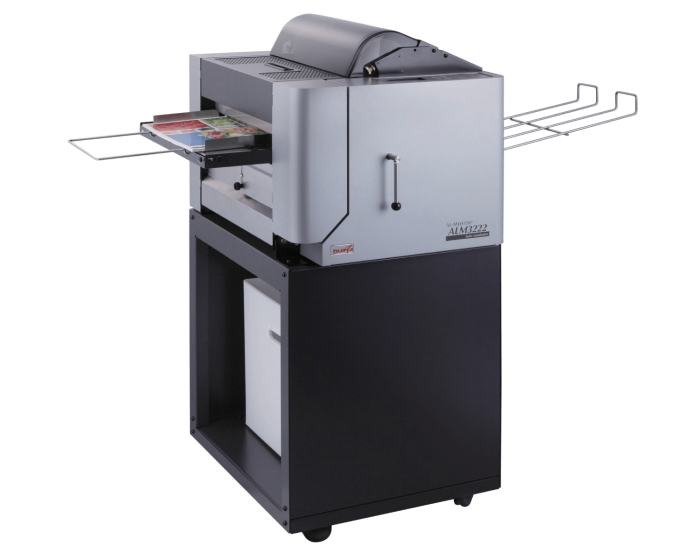

Fujipla ALM 3222 Fully Automatic-Feed Laminator with Trimmer - ALM3222

In stock

Product Discontinued

An incredibly popular fully automatic dual-sided roll laminator with trimmer

Eliminate time-consuming, costly hand feeding and trimming in laminating with the Fujipla ALM 3222 Fully Automatic Feed Laminator with Integrated Trimmer. The ALM3222 features heated rollers for a crystal clear scratch-free lamination and adjustable trim for full encapsulation or precise flush cut. The Green Button Operation allows you to simply press the button and walk away for labor-free, fully trimmed and laminated sheets. ASAP adhesive laminating film in 1.5, 3, 5 and 10 mil (gloss and matte) adheres to hard-to-laminate digitally printed sheets.

Product Details

  • Small Foot Print - less than 4 sq. ft.
  • 115 Volt, 15 amp service with economy mode.
  • Ultra quick warm up of less than 5 minutes.
  • Virtually Unattended Operation.
  • Digital Sheets sizes: 13" x 19" ,12" x 18" ,11" x 17" ,8.5" x 11".
  • Laminates copy paper up to 100lb cover stock.
  • Automatic two side lamination or short one side work.
  • Adjustable Automatic Flush or Sealed edge trim.


  • Laminating Speed: 20"- 68"/min.
  • Temperature Range: 170-270°F
  • Ultra Fast Warm-Up Time: Approximately 5 minutes
  • Film Thickness: 1.5, 3, 5  and 10 mil
  • Thickness of Objects: 20lb bond - 130lb cover
  • Paper Feeding Capacity: 200 Sheets, Adjustable Paper Guide
  • Applicable Sizes: Letter Paper Size 8 1/2" x 11", Tabloid Paper Size 11" x 17", Digital Paper Size 12" x 18", Digital Paper Size 13" x 19"
  • Trimming Methods: (2 modes) Flush trim or edge seal for all 4 sides of the print
  • Operation Panel: LCD display for start, stop, temperature, and trim settings, leading and trailing edge side cuts are adjustable
  • Other Features: Laminated sheet counter, Film tension control, Roller gap lever, Paper thickness feeder adjustment lever
  • Power Consumption: 900W
  • Power Supply: AC 120V (60Hz)
    • Net Weight: Laminator 130 Lbs. Stand: 48 Lbs.

Fujipla DRYLAM ALM3230 Automatic Laminator Demonstration
