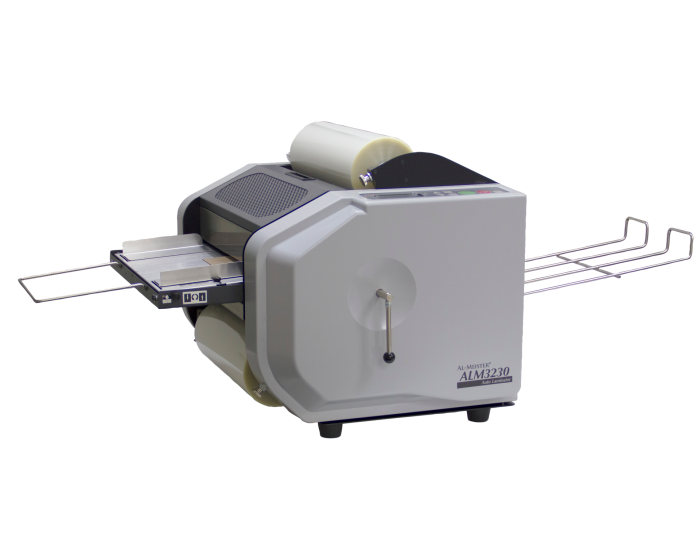

Fujipla ALM 3230 Desktop Automatic-Feed Laminator with Trimmer - ALM3230

$9,995.00
In stock
SKU
ALM3230

An incredibly popular dual-sided roll laminator with trimmer

Eliminate time-consuming, costly hand feeding and trimming in laminating with the Fujipla ALM 3230 Desktop Automatic Feed Laminator with Integrated Trimmer. The ALM3230 features heated rollers for a cyrstal clear scratch-free lamination and adjustable trim for full encapsulation or precise flush cut. The ALM3230 can easily be setup on any tabletop or optional stand. The Green Button Operation allows you to simply press the button and walk away for labor-free, fully trimmed and laminated sheets. ASAP adhesive laminating film in 1.5, 3 and 5 mil, gloss, matte and Elegant Silk Matte adheres to hard-to-laminate digitally printed sheets.

Product Details

  • Small Foot Print - less than 4 sq. ft.
  • Table Top or optional stand with locking roller casters.
  • 115 Volt, 15 amp service with economy mode.
  • Ultra quick warm up of less than 5 minutes.
  • Virtually Unattended Operation.
  • Digital Sheets sizes: 13" x 19" ,12" x 18" ,11" x 17" ,8.5" x 11".
  • Laminates copy paper up to 100lb cover stock.
  • Automatic two side lamination or short one side work.
  • Adjustable Automatic Flush or Sealed edge trim.

Specifications

  • Laminating Speed: Fixed speed at 40"/min.
  • Temperature Range: 170-270°F
  • Ultra Fast Warm-Up Time: Approximately 5 minutes
  • Film Thickness: 1.5, 3, and 5 mil
  • Thickness of Objects: 20lb bond - 100lb cover
  • Paper Feeding Capacity: 100 Sheets, Adjustable Paper Guide
  • Applicable Sizes: Letter Paper Size 8 1/2" x 11", Tabloid Paper Size 11" x 17", Digital Paper Size 12" x 18", Digital Paper Size 13" x 19"
  • Trimming Methods: (2 modes) Flush trim or edge seal for all 4 sides of the print
  • Operation Panel: LCD display for start, stop, temperature, and trim settings, leading and trailing edge side cuts are adjustable
  • Other Features: Laminated sheet counter, Film tension control, Roller gap lever, Paper thickness feeder adjustment lever
  • Power Consumption: 900W
  • Power Supply: AC 120V (60Hz)
  • Net Weight: Laminator 125 Lbs. Stand: 55 Lbs.
  • Optional Accessories: Rolling Stand
  • Drylam ALM3230 Sell Sheet

    (5.62 MB)

    Download

Fujipla DRYLAM ALM3230 Automatic Laminator Demonstration
