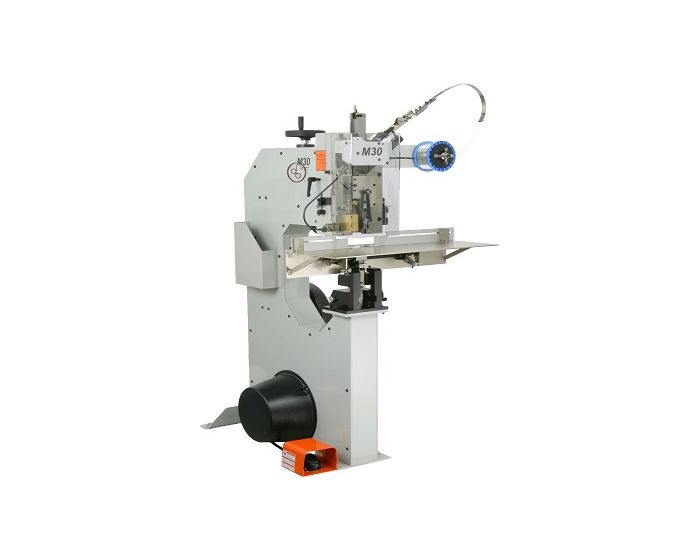

Deluxe M30 AST 1-1/4"

In stock

Heavy-duty stitcher with 1-1/4" stich capacity, ideal for flat, saddle and corner-stitched jobs. It can even stab stitch!
Free ground shipping on all orders $50 or more!

The DeLuxe M30-AST 1-1/4" Stitcher is ideal for flat, saddle and corner-stitched jobs. It can even stab stitch! It has a speed of up to 180 stitches per minute, has a stitching capacity of 1-1/4”(Approx 275 sheets, and up to 2" stab stitch capability (Approx. 440 sheets). An Optional kit for loop stitching is available to optimize its productivity. The DeLuxe M30-AST 1-1/4" Stitcher accommodates 20-28 gauge round or 19x21.5, 20x24 and 21x25 flat wire sizes.


  • A stitch capacity from 2 sheets up to 1-1/4" (32mm) standard
  • The ability to run flat, saddle, or corner stitched jobs
  • Stab stitch capability up to 2" (51mm)
  • Wire Sizes: 20-28 gauge round or 19 x 21-1/2, 20x24 and 21x25 flat
  • Clinch: moveable clincher for flat stitching and adjustable table height for stab stitching
  • Table: 36" wide heavy duty, 20" throat for flat and saddle work
  • Speed: 180 stitches per minute
  • Optional loop stitch kit available
  • Manufacturers Warranty - 90 Days
M30 AST 7/8" Stitcher Specifications
Stitching Wire Round 20-28 guage
Stitching Wire Flat 19x21-1/2, 18x20, 20x24, 20x25, 21x25
Maximum Thickness 1-1/4"
Stitch Capacity 1-1/4 (32MM)
Speed 180 stitchers per minute
Overall Dimensions 30" W x 70" H x 40" D
Electrical 115V, 60 Hz
Net Weight 670 lbs.
