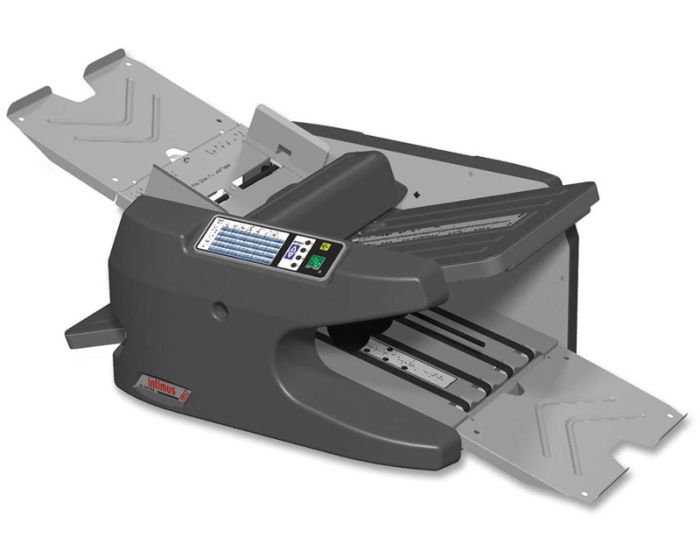

Martin Yale 1812 Autofolder Paper Folder (18" x 12" max sheet size)
Preset fold gate position markers and no feeding adjustment fir different paper thicknesses make the Martin Yale 1812 paper folder a productive solution for folding your sheets up to 12x18 inches.
The Martin Yale 1812 Autofolder is a power packed folding machine for your bigger sheets as large as 12 x18 inches with 4 slectable folding speeds up to 15,000 sheets per hour. One of this paper folder's best features is that you can quickly and smoothly switch between different paper thicknesses without making any asjustements to the feeder. Choosing from 7 common fold patterns is quick and simple thanks to the matrix of position settings printed on the control panel. Just find the gate positions for your paper size and fold type - then move the fold plates' thumbscrews to those settings and lock it in place. This folder is ideal for digital production enviroments and mailing departments that often produce 12" x 18" larger sheets jobs.
Key Features:
- Easy-to-use fold table settings are pre-marked & can be fine adjusted
- Precision paper skew adjustment
- Creates 7 preset different common fold patterns
- Self-adjusting retarder avoids feeding doubles
- 4 speed settings up to 15,000 sheets per hour
- Handles sheet sizes from 2.5" x 5.2" up to 12" x 18", 18 lb. bond - 90 lb. index stocks
- Feed table capacity of up to 500 sheets (20lb. bond)
- Folds stapled sets up to 5 sheets by hand-feeding documents into the feed table bypass
| Martin Yale 1812 Paper Folder Specifications | |
| Paper Sizes | 2.5" x 5.2" to 12" x 18" |
| Stock Weights | 18 lb. up to 90 lb. index (162 gsm) |
| Folding Speed: | 4 sppeds from 3,000 to 15,000 sheets/hr. |
| Feed Tray Capacity | Approx 500 sheets 0f 20 lb. bond |
| Fold Patterns | Half, Letter, Z-Fold, Double-parallel, Gate, Engineering (short z-fold), Church Fold |
| Power | 115V 60HZ |
| Dimensions | 22.2" x 43.2" x 17.8" |
| Weight | 102 lbs. |
| Warranty | 1 Year Defective Parts |
