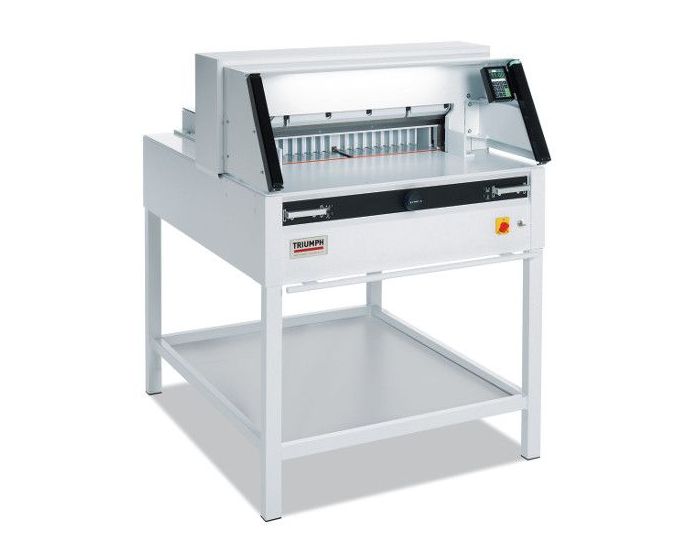

MBM Triumph 6660 25-1/2" VRCUT-Ready Fully-Automatic and Fully-Programmable Electric Paper Cutter - 6660, CU0492V
This 25-1/2" -wide paper cutter is perfect for low- to medium-use locations.
The professional Triumph 6660 paper cutter offers impressive features, superior cutting capability, and an essential safety package. The Triumph 6660 accepts documents and formats up to 25 ½" L and 3" H and easily performs a narrow cut of less than 1 inch (0.98 in/25 mm). With the Easy Cut system, the blade and clamp can be controlled independently via separate trigger points on the activating bars. By pressing on these separate points, the clamp can apply pressure before the blade activates. This Easy Cut system requires two-hand operation, maintaining a clear level of user safety. The Triumph 6660's SCS (Safety Cutting System) includes a safety cover on the rear table, main switch and safety lock with key, and easy blade change from the front of the machine without removing covers. Cutting sticks can also be turned or replaced from the outside of the machine. The convenient blade changing device covers the sharp edge of the high quality, German made steel for user protection.
While many Triumph models feature hinged, transparent safety guards which lock upon operation initiation, the Triumph 6660 features the innovative IR light barrier located on the front table. If an object penetrates this IR light beam safety curtain, the cutting process is immediately interrupted. A disc brake guarantees that the blade is instantly stopped and the automatic return to safe position is activated.
A step up from the standard keypad, the Triumph 6660's modern touch pad offers multilingual functions and abundant storage capacity. Capable of storing up to 99 programs with up to 99 steps each, this control panel also offers pre-programmed DIN sizes and automatic memory for repeat cuts. The electronic control module operates the power back gauge for precise positioning. Users can place their paper stacks on the cutting table and set the appropriate measurements. Bright LEDs display an optical cutting line to indicate exactly where the cut will be performed. The electronic hand wheel is ideal for manual repositioning, offering infinitely variable speed control from very slow to very fast. Simply reposition the gauge until the proper measurements are reached.
The solid all-metal construction proves durable. A practical hook-in tool holder is placed on the back table and keeps all necessary tools for blade change and service jobs within reach.
WHAT IS THE OPTIONAL VRCUT ALL ABOUT?
VRCUT IMPOSE
The VRCut Impose module is a standalone imposition software that transforms your artwork into PDFs laid out specifically for optimized cutting on the VRCut enabled Triumph cutter. The software places a template barcode and innovative visual markers that enable an automated cutting process. Consolidate your workflows by taking advantage of the software’s data merge feature.
VRCUT CONTROLLER
The VRCut Controller module connects directly to your Triumph cutter for automatic back gauge movement and provides a step-by-step visual interface. The operator simply scans the document barcode to load the corresponding template and artwork to start the job. The software gives the operator visual indication of paper orientation, paper rotation between cuts, when to discard scraps, and how to process cut sheets. This first of its kind software simplifies the task of cutting, which allows operators with all levels of experience to cut with confidence!
Specifications
- Type of machine: Automatic Programmable
- Cutting Width: 25 1/2"
- Cutting Height: 3"
- Narrow Cut: 1"
- Cutting Length Behind Blade: 24"
- Motor Output, Horsepower: 2
- Power Supply: 115V, 60Hz (20A dedicated circuit required)
- Dimensions (D x W x H): 48" x 39" x 51" (61 1/2 W with side tables)
- Shipping Weight: 775 lbs (796 lbs with side tables)
- Warranty: 1-year limited warranty, excluding wearables
MBM Triumph 6660 VRCUT-Ready Paper Cutter
