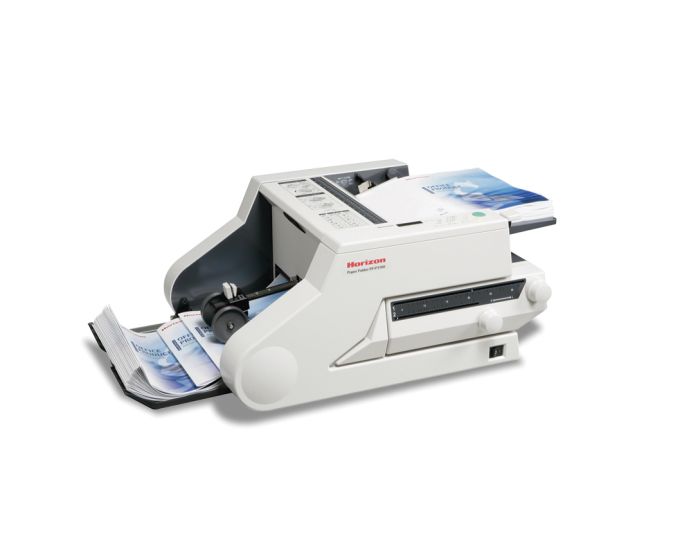

PF-P3110 Paper Folder Semi-Automatic

$4,798.00
In stock
SKU
PF-P3110

The PF-P3110 Paper Folder offers six standard fold formats to choose from and can fold up to 251 sheets per minute. With its simple dial-up operation and innovative design, the PF-P3110 is the economical solution to any operations folding requirements.
FREE ground shipping on this item!
Contact CFS for best price, click to reach us or call toll-free: 1-888-237-3221

The Standard Horizon PF-P3110 desktop folder offers quick set-up, easy operation and enhanced productivity. High quality engineering and construction and an innovative design make the PF-P3110 an exceptional folder that handles a range of stocks and applications while providing years of reliability. Additionally, the PF-P3110's unique internal fold-plate design and variable speed settings provides enhanced sound reduction control when desired. The PF-P3110's innovative LED assisted manual set-up makes selecting between six preset standard folds and four common paper sizes fast and easy. Simply select a preset paper size and a fold format on the control panel and the LED fold position indicators automatically illuminate the corresponding fold alignment positions. The bright pinpoint settings of the LED system accurately highlights where to manually align each preset fold on the PF-P3110, making set-up a simple task for any operator. Highly productive with feeding speeds up to 251 sheets per minute, the PF-P3110 superior friction-feed system with three speed settings is flexible and reliable. Other key productivity features include a single sheet test feed button to assist set-up and a delivery conveyor to neatly stack folded sheets during production.

Product Details

  • Simplicity and Performance: The PF-P3110's innovative LED assisted manual set-up makes selecting between six preset standard folds and four common paper sizes fast and easy. Simply select a preset paper size and a fold format on the control panel and the LED fold position indicators automatically illuminate the corresponding fold alignment positions. The bright pinpoint settings of the LED system accurately highlights where to manually align each preset fold on the PF-P3110, making set-up a simple task for any operator. Highly productive with feeding speeds up to 251 sheets per minute, the PF-P3110 superior friction-feed system with three speed settings is flexible and reliable. Other key productivity features include a single sheet test feed button to assist set-up and a delivery conveyor to neatly stack folded sheets during production.
  • Selecting A Fold: The PF-P3110 offers six standard folds: letter, z-fold, gate, half, engineering, and double parallel for each of the four preset paper sizes. It is also simple to manually set-up a custom fold application with the PF-P3110's helpful calibrated fold positioning guide. It's fast. It's compact. It's easy to operate and maintain.
  • Preset Fold Formats: Letter Fold, Half Fold, Double Parallel Fold, Engineering Fold, Z-Fold, Gate Fold
Standard PF-P3110 Paper Folder Specifications
Paper Sizes 2.56" x 4.26" to 11.88" x 17"
Stock Weights 16lb. bond to 80 lb. text (60 lb. cover)
(dependent on grain and paper type)
Folding Speed: Up to 251 sheets/min. on 8.5" x 11"
Feed Tray Capacity 1.18" (approx. 300 sheets)
Fold Patterns Half, Engineering, 8-Page, Letter, Accordion, Gate
Power 115V 60HZ 77W
Dimensions 21.3" L x 37.4" W x 12.7" H
Weight 82 lbs.
Warranty 1 Year Defective Parts
Six Standard Fold Patterns:
common fold patterns
