Plockmatic BM60 Semi-Automatic Bookletmaker
Semi-automatic bookletmaker that can accommodate up to 22 sheets of 20 lb. paper. Offers automatic stapling and folding in one pass!
The Plockmatic BM60 bookletmaker is designed for hand feeding of precollated/sorted sets. It handles up to 22 sheets of 20lb. paper and will fold and staple in a single pass!
This machine is extremely simple to operate and has become a standard for many quick-printers across the United States. The PL60 is the perfect solution for low to mid bookletmaking volumes.

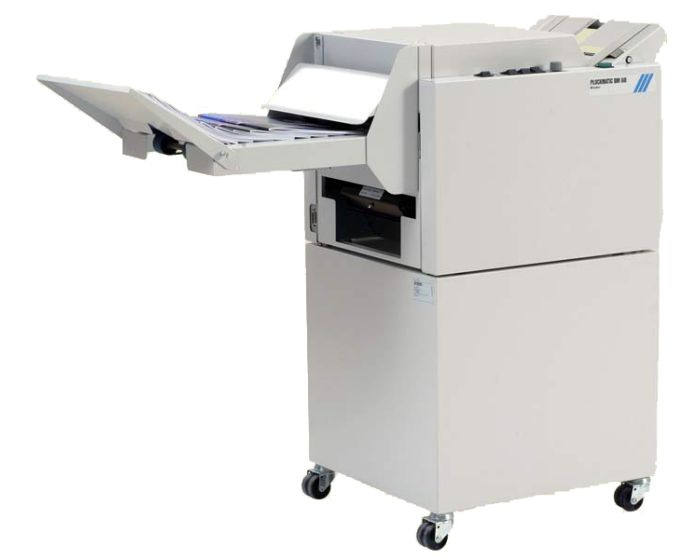

Note: The BM60 pictured above includes the automatic belt stacker and stand, these accessories are sold separately.
- Automatic folding & stapling
- Speeds of up to 1800 booklets per hour
- Folding & stapling can be done separately or both at once
- 7 different booklet types/stapling methods
- Speed is adjustable to suit operator or application
|Plockmatic BM60 Specifications|
|Capacity||Up to 22 sheets of 20# bond|
|Speed||Up to 1800 booklets/hr.|
|Max. Paper Size||13-3/8" x 18"|
|Min. Paper Size||5-1/2" x 8-1/4"|
|Low Staple Detection||Yes|
w/o Stand or Belt Stacker
|17-3/4"(H) x 23-1/4"(W) x 19-3/4"(D)|
w/ Stand and Belt Stacker
|38-1/2"(H) x 39"(W) x 19-3/4"(D)|
