Used Challenge EH-3 3-Spindle Paper Drill - Fully Serviced

In stock

Fully serviced and tested by our in house professional service technician.

Free freight

Used Challenge EH-3C Paper Drill - Fully Serviced

This Challenge EH-3C has been fully serviced and tested by our in house proffesional service technician. The used EH-3C is in EXCELLENT condition! Includes a 90-day defective parts warranty AND free over-the-phone tech support for ONE YEAR!

Challenge EH-3C Multi-Spindle Drill Specifications
Max. Lift Capacity 2.5"
Operation Hydraulic (foot pedal-activated)
Drill Actuation Method Heads lower to table
Drill Heads 3 Moveable
Drill Bits Included 3 @ 1/4" + 3 @ 5/16"
Bit-to-Bit Range 2.75" - 4.5"
Range between Outside Bits 5.5" - 9"
Range from Bit to Backguage 0-5"
Range from Left Side Guide to Left Bit 0-14.5"
Table Size 19.5" x 31.5"
Table Height 37"
Electrical 220 v / 1 ph / 60Hz / 17 amps (service size 30 amps)
Dimensions 41.5" W x 59.25" H x 36" D
Weight 520 lbs.
Shipping Weight 570 lbs.

This unit may take 1-2 weeks to prepare and ship.  Please contact us for more information.

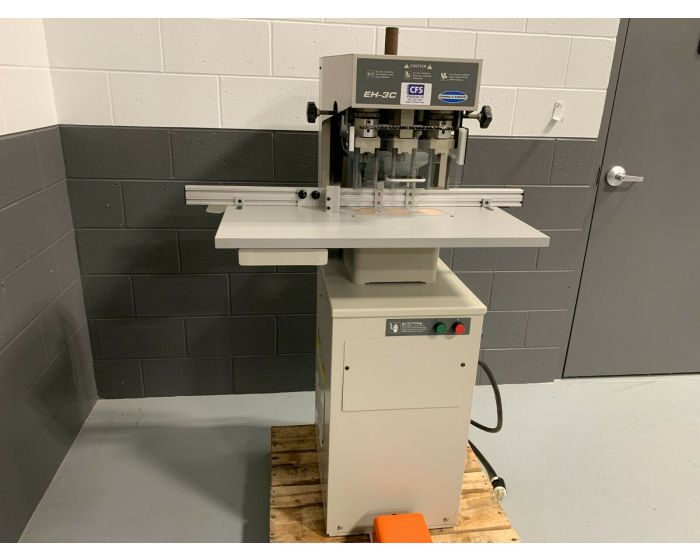

Please note that drill pictured is not exact machine for sale. Drill will be in similar condition, but could have slightly different options. Contact us for our current availability.
