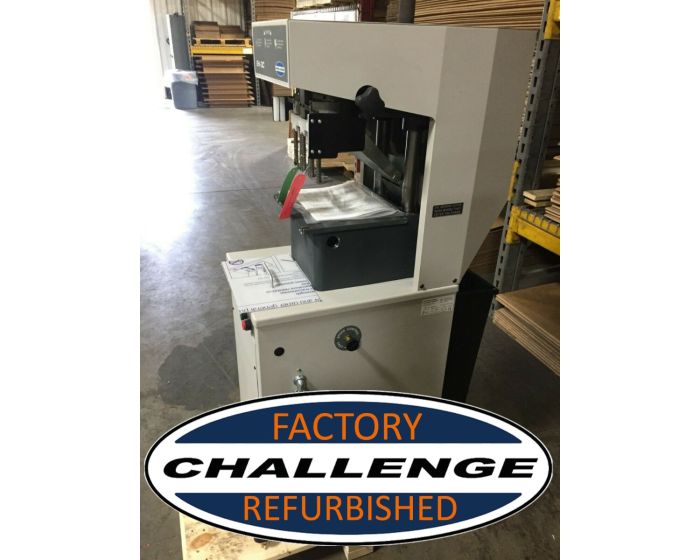

Refurbished Challenge EH-3 3-Spindle Paper Drill - EH-3-REFURB

$2,999.95
In stock
SKU
EH-3REFURB

Save BIG on a refurbished model of the most popular and best-selling three-spindle paper drill in the world!

Free freight

THIS IS FOR A REFURBISHED EH-3C DRILL WITH 90-DAY WARRANTY

In 1961, the original EH-3 multiple spindle drill was introduced to the print finishing industry. Today, the original is still the best and will be a valuable asset for any print shop!

The Latest iteration - the EH-3C can handle most anything you throw at it!  This hydraulic-powered drill can eassily power through up to 2-1/2" inches of paper in one stroke.  The two outside spindles are adjustable (left-to-right) to perform most popular drilling patterns.  The standard back stop comes with one user-adjustable paper stop.  The optional trip-backgauge allows you to set up multiple stopping locations to enable you to drill multiple hole patterns  per lift (left-right stops).

The EH-3C is proudly manufactured in the USA, and is fully UL certified!

Number of Drill Heads 3
Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm
Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm
Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm
Maximum Drilling Capacity 2-1/2" / 63 mm
Strokes per Minute (adjustable) Up to 18
Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm
Vertical Adjustment of Individual Heads 1/4" / 6 mm
DIMENSIONS
Table Size 19-1/2" x 31-1/2" / 50 x 80 cm
Table Height 37" / 94 cm
Overall Height 59-1/4" / 151 cm
Floor Space Needed 36" x 41-1/2" / 91 x 105 cm
Net Weight (approximate) 520 lbs / 236 kg
Shipping Weight (approximate) 570 lbs / 259 kg
ELECTRICAL
1 Phase, 60 Hz, AC.  Pump: 1/2 HP.   Spindle Motor: 1 HP.
208 Volts, 18 Amps (service size 30 Amps) or
230 Volts, 17 Amps (service size 30 Amps)
UL Listed
