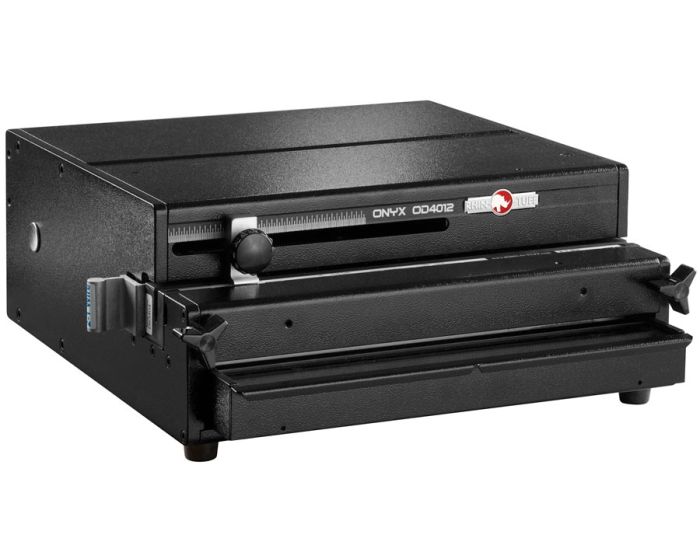

The ONYX OD-4012 is a heavy-duty 11" punch that is designed for low to high-volume production. It includes the E-Z Change Die System and comes with both a manual and an auto-reversing feature that prevents jams. The ONYX OD 4012 uses 11" and A4 size dies with open sides for wider sheet punching capability. OD 4800 & OD 4000 dies and modules work on the ONYX OD4012, adding additional useful life to existing equipment. It has easy "Paper to Pin" sight alignment, for balanced hole to edge margins on odd-sized applications and features our unique Punch Registration System that assures accurate margins on an 11" sheet regardless of which die is used. Punching capacity rated at 30 sheets of 20 lb bond paper. The NEW Anti-Jam feature uses an overload detection feature to trigger an auto-reversing function to eliminate jamming.
Other Features include:
ONYX OD4012 Punch Specifications | |
Punch Capacity | Rated at 30 sheets of 20# bond |
Width | 11¾" open ended |
Electrical | 115V, 4 amps, 60 Hz |
Dimensions | 16" W x 6.5" H x 18" D |
Weight | 48 lbs. |
