MBM Triumph 4850 18-5/8" Fully-Automatic Electric Paper Cutter - 4850, CU0416L

$10,899.00
In stock
SKU
4850

18-3/4" fully-automatic electric cutter w/ 3" cutting height capacity - The 4850 offers precise cutting with an electro-mechanical blade drive and automatic clamp.
FREE ground shipping on this item!

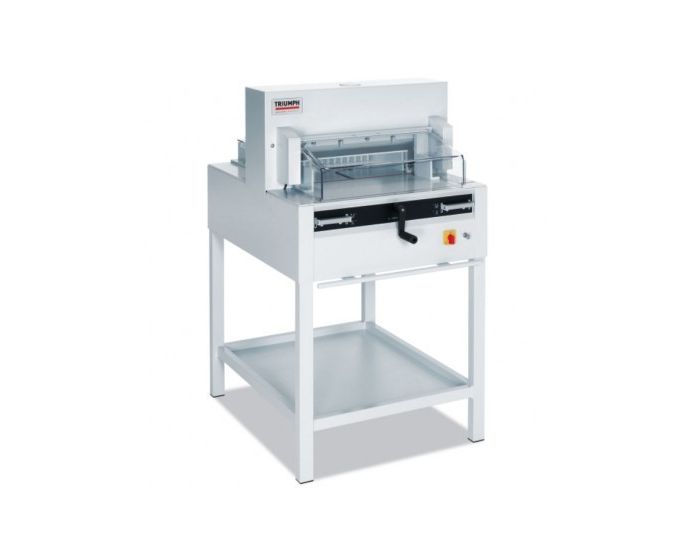

The MBM Triumph 4850 Automatic Cutter is powerful enough to cut through a stack of paper as thick as 3" and as wide as 18-5/8". It sits at a comfortable working height of 37" and features an electric blade and clamp drive, as well as a spindle-guided back gauge controlled by a calibrated crank. The front table digital display screen features multilingual operator guidance in either cementers or inches (cm or in). The Triumph 4815 Cutter features a bright LED optical cutting line that gives you a precise view of where the machine will cut. The high-quality German steel blade will power through for all your cutting needs while the all-metal construction makes the cutter strong and stable.

MBM SCS™ Features ("Safety Cutting System")

Safety concerns are put to bed with the MBM Triumph SCS® Safety Cutter System comprehensive package that ensures the protection of users. This package includes the following features: patented EASY CUT electronic blade activation bars for true two-hand operation; IR light beam safety curtain on front table; transparent safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade and clamp return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.

  • Dual-Handle Activation - Both hands are required to pull down two handles to activate the clamp and blade, ensuring that your operators hands can be nowhere near the blade or clamping mechanisms.
  • Clear Safety Shields - Front and back clear safety shields allow you to easily see your stack of paper, the measurements, and the blade. The machine will not operate with either shield lifted, which means your hands and other items physically cannot be near the blade when cutting is activated. While cutting, the shield automatically locks into place, so cannot be opened until the blade lever is placed back into the upright position and the safety catch is locked.
  • Optical Cutting Line - A bright, LED optical cutting line indicates the exact position of cut and helps to perfectly position trim marks.
  • All Paper Adjustments Outside - With all the paper adjustments on the outside of the machine, you can accurately and easily set the measurements without having to disassemble or re-assemble the machine in any way.
  • Blade Changing Device - A blade changing device is included in this paper cutter, which covers the cutting edge of the blade while you replace it, protecting the user. Handling knobs mean you don't have to touch the blade with your hands.

Specifications

  • Cutting Width: 18 5/8"
  • Cutting Height : 3"
  • Narrow Cut :1"
  • Cutting Length Behind Blade: 18"
  • Motor: 2 hp
  • Power Supply: 115 V, 60 Hz (20 amp dedicated line required)
  • Motor output, horsepower: 2
  • Dimensions: 41 1/2" x 30" x 51" (53" W with side tables)
  • Shipping Weight: 556 lbs. (577 with side tables)
  • Warranty: 1-year limited warranty, excluding wearables
Spec Sheet (450.28 kB)
Op Manual (4.20 MB)
