Used Challenge Titan 200 Programmable Hydraulic Paper Cutter - 2 Cut Buttons - Fully-Serviced

In stock

Fully-programmable hydraulic paper cutter from Challenge Machinery

Challenge Titan 200 Programmable Hydraulic Paper Cutter - 2 Cut Button - Fully-Serviced - Runs Great!
This Titan 200 was fully-serviced and tested by our factory-trained, in-house service technician. We are including a 90-day defective parts warranty AND 1-year free over-the-phone tech support. Includes (2) sharpened blades, blade changing tool, cut sticks and jogging block.

**IMPORTANT** Any door opening that the cutter is to pass through MUST be at least 36.5" inches wide!

The Titan 200 is a 20 inch wide fully-automatic paper cutter with hydraulic clamp pressure and a powered blade. The easy-to-read digital display allows for ultimate control along with a line light cut position indicator and push button controls, the 200 paper cutter provides easy use as well as operator protection. The Titan 200 is the ideal cutter for a mid-to-high production facility that requires high-speed production, durability and superior safety.Features Include:
  • 20" Cutting Width, 3-1/4" Clamp Opening
  • 2 Cut Button Model
  • Hydraulic Clamping & Cutting
  • Easy to Read LED Digital Display
  • Line Light Cut Position Indicator
  • Hydraulic Motor Runs Only During Cutting Cycle
  • Plexiglas Safety Shield
  • Rear Table Safety Cover
  • Heavy Duty Casters Cast Iron and Steel Construction
  • Plugs Into 208V/230V 1-Phase, 60 Hz, 12 Amps Electrical Socket (NEMA 6-15R or 6-20R)
Includes: a brand new blade (installed), blade changing tool, 12 plastic cutting sticks (1 installed) and a jogging aid block.

Titan 200 Automatic Cutter Specifications
Cutting Width 20"
Cutting Height 3.25"
Clamping Method Hydraulic & Manual (optional foot lever)
Min. Clamping Force 1250 lbs.
Max. Clamping Force 2500 lbs.
Narrow Cut 0.5"
Cutting Length behind Knife 20"
Table Length in front of Knife 16"
Table Height (from floor) 36"
Electrical 208V/230V 1-Phase, 60 Hz, 12 Amps (service size 15 Amps)
Requires receptacle type: NEMA 6-15R or 6-20R
Dimensions 36" W x 53" H x 49" D
Weight 755 lbs.
Shipping Weight 920 lbs.
Used Cutter Warranty 90 Days Defective Parts

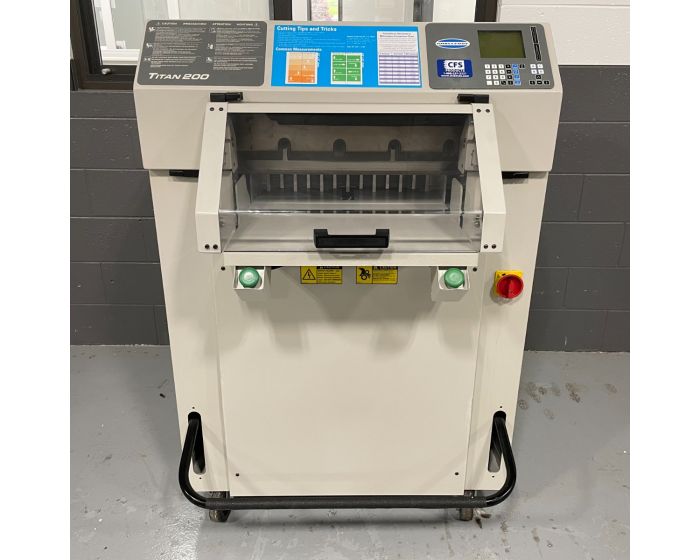

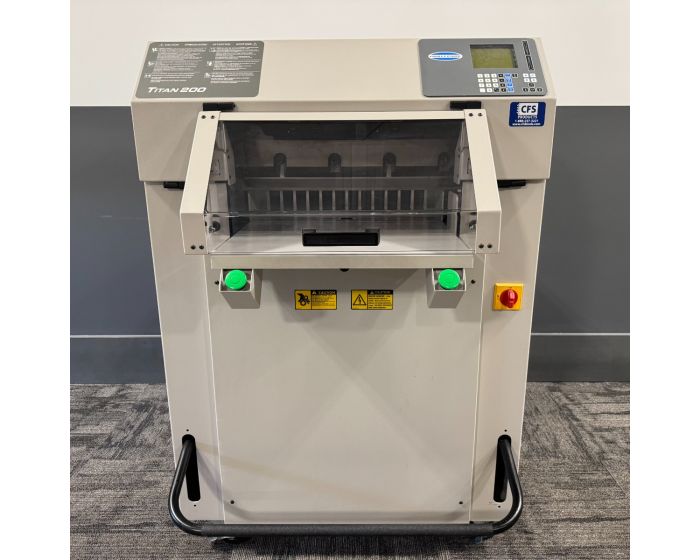

This unit may take up to one week to prepare and ship.  Please contact us for more information. Please note that cutter pictured is not exact machine for sale. Cutter will be in similar condition, but could have slightly different options. Contact us for our current availability.
