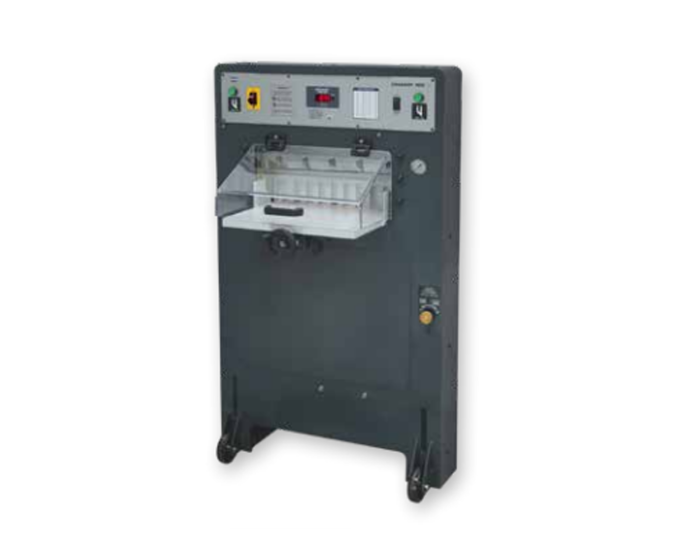

Challenge Champ 185 18.5" Hydraulic Paper Cutter - U. S. Made - 185CHA-MT
$13,195.00
In stock
SKU
185CHA-MT
Fully-hydraulic 18.5 paper cutter - MADE IN THE U.S.!
The CHAMP 185 series delivers hydraulic powered strength and durability with easy to use controls to the 18” cutter market that is crowded with weaker electric motor powered machines. The CHAMP's strong ¼” thick cold rolled steel weldment frame offers a superior design, allowing operators to cut today's hard stocks accurately in piles of up to 3.25” high.
Proudly manufactured at our factory in Michigan, the USA made CHAMP 185 cutter has wheels with lockable casters, allowing the machine to easily be moved - even through standard 36” wide doorways.
Features:
-
18.5” cutting width / 3.25” clamp opening
-
Hydraulic clamping and cutting – 2,350 lbs. pressure
-
120 volt 1-phase power / optional 220 volt motor
-
Adjustable clamp pressure
-
Maximum cut 19” / minimum cut .75” (or 1.75” with false clamp plate)
-
Red LED optical cut line-light indicator
-
Machine dimensions 33.5” wide (tilt shield) x 42” deep
-
Optional false clamp plate
-
Optional pre-clamp foot pedal
-
Optional light beam system replaces the front tilt shield
-
One HHS knife, three cutting sticks, wood jogging aid, tool kit, knife change holder assembly, and operator's manual included
-
1-year warranty
-
CE certified
-
Manufactured in the USA
Specifications
- Cutting Width: 18-1/2” / 470 mm
- Clamp Opening: 3-1/4” / 82mm
- Maximum Cut: 19” / 482mm
- Minimum Cut: 3/4” / 19mm
- Machine Width: 33-1/2” / 851 mm
- Machine Depth: 43-1/2” / 1105 mm
- Max Clamp Pressure: 2350 lbs.
- Power: 120volt / 60Hz / 1-phase / 20 amp service
- Power option 1: [Optional] 220 Volt AC, 60 Hz, 1 Phase, 10 Amp (service size: 20 Amp) – power cord included
- Power option 2: [Optional] 230 Volt AC, 50 Hz, 1 Phase, 10 Amp (service size: 20 Amp) – power cord included
